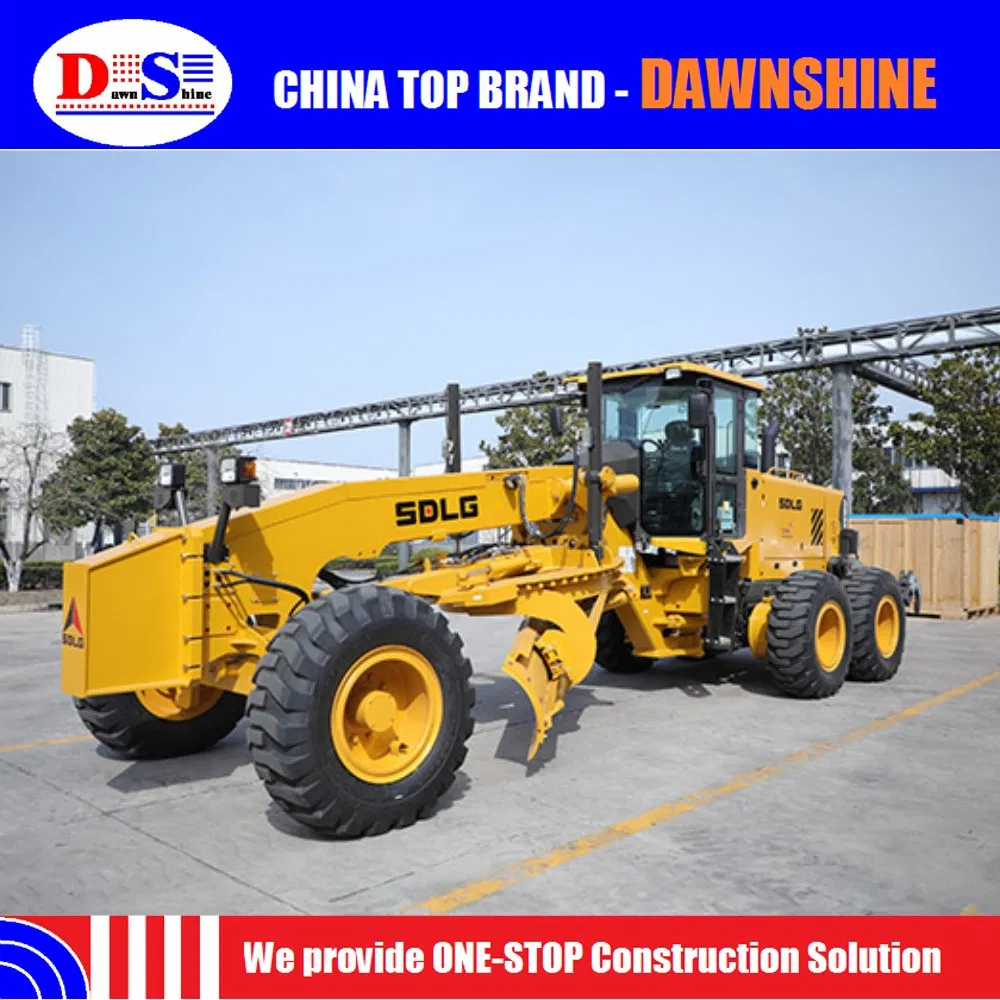

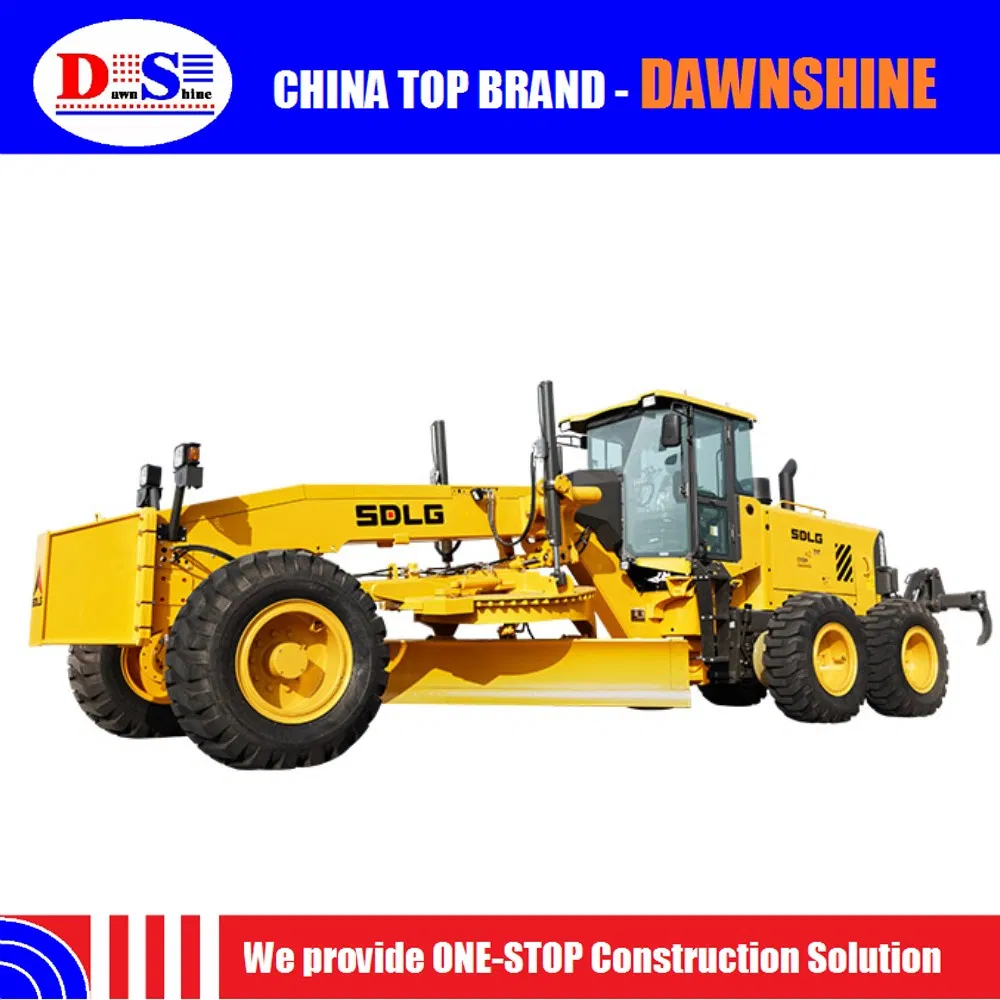

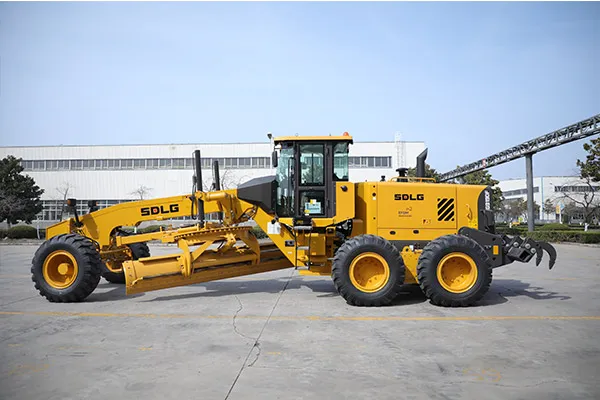

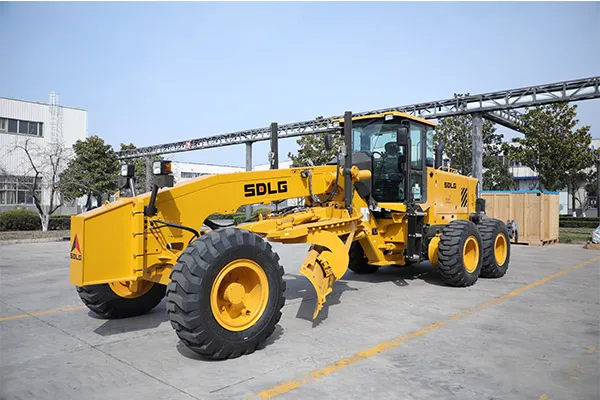

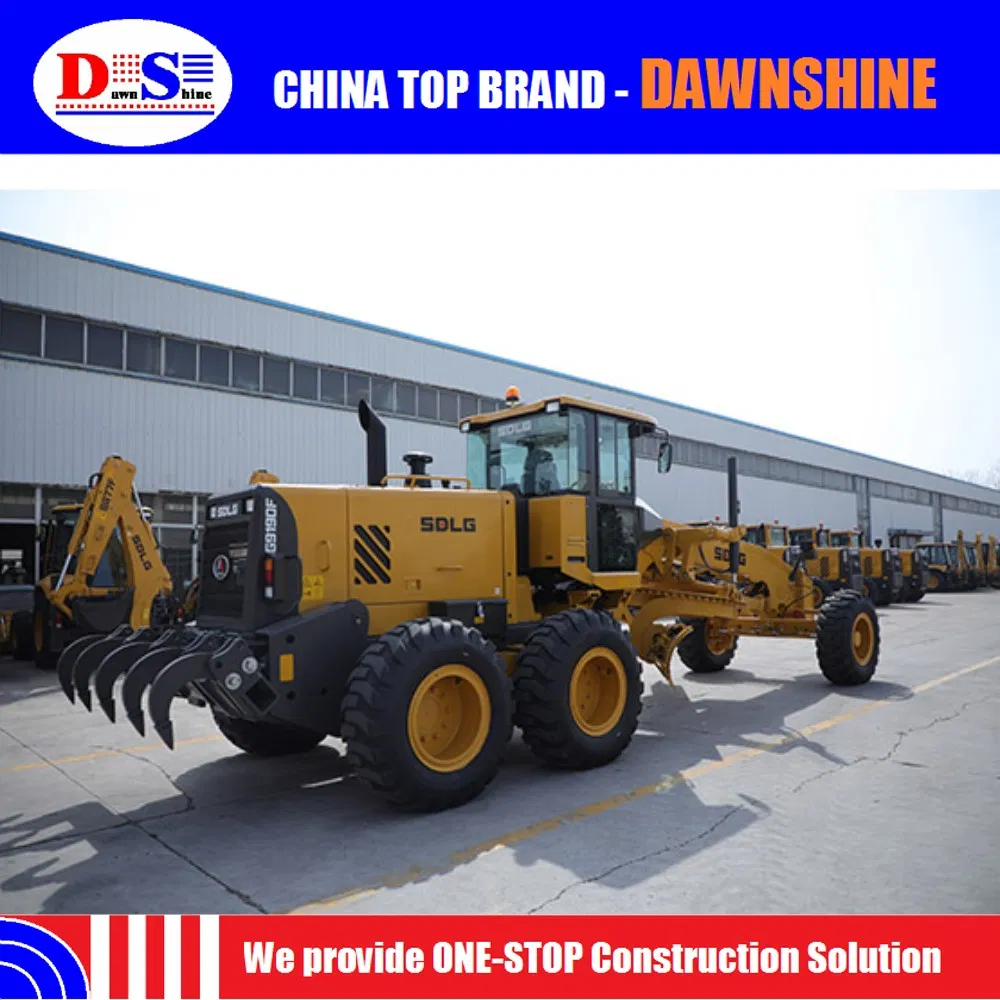

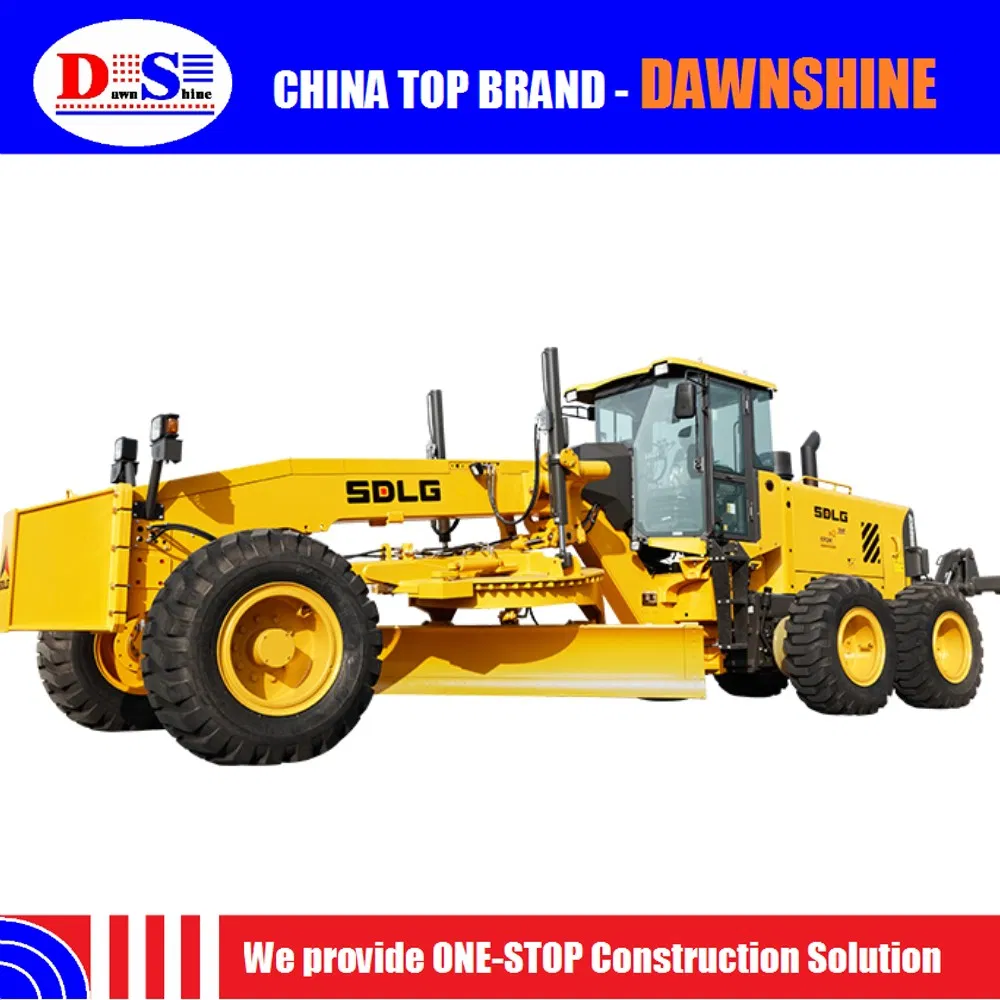

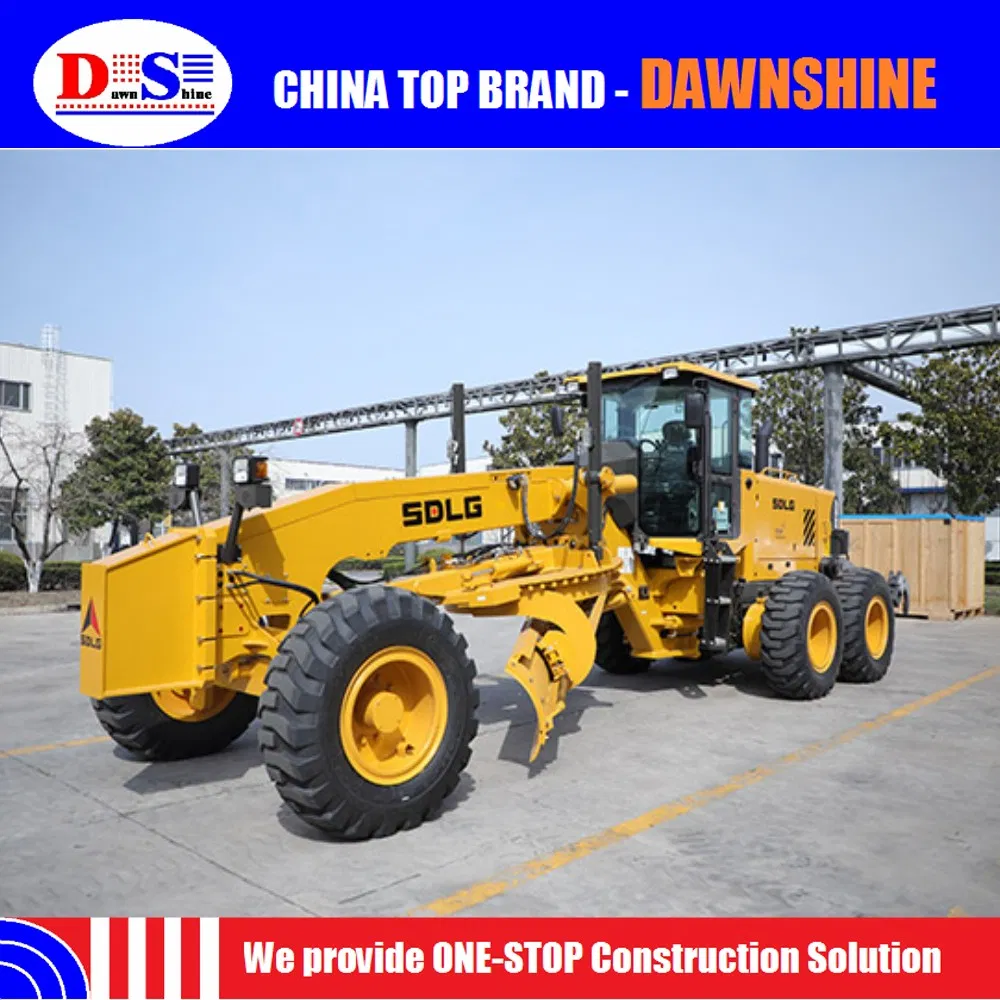

| Model NO. | G929 |
| Certification | TUV, ISO, RoHS, CE |
| Condition | New |
| Application | Railway, Mine, Farmland, Highway |
| Transmission | Hydraulic |
| Walking Mode | Wheeled |
| Type | Small Grader |
| Operating Weight | 23000kg |
| Rated Power | 211 Kw |
| Fuel Tank Capacity | 410L |
| Max.Drawbar | 145.5kN |
| Specification | 10170*2910*3390mm |
| Overall Working Weight(kg) | 23000 |
| Rated power(kW) | 211 |
| Max. tractive force(kN) | 145.5 |
| Overall dimension(L*W*H)(mm) | 10170*2910*3390 |
| Max. inclination angle of front wheel(°) | ±18 |
| Max. swing angle of front axle(°) | ±16 |
| Max. steering angle of front wheel(°) | ±50 |
| Steering angle of articulated frame(°) | ±21 |
| Cutter size(L*H*T)(mm) | 4267*680*25 |
| Min. turning radius(m) | 8.25 |
| Cutting depth of blade(mm) | 825 |
| Engine model | SD130B13-130 |
| Emission standard | China Phase 3 |
| Fuel tank capacity(L) | 410 |
The G929 is versatile and ideal for highway construction, railway maintenance, mining operations, and large-scale farmland leveling.
The hydraulic transmission provides smooth power delivery and easier control, allowing the operator to manage speed and torque efficiently across different terrains.
The grader features an enhanced ROPS/FOPS certified cab, which ensures maximum structural protection for the operator and excellent 360-degree visibility.
Yes, the 14-foot moldboard blade supports a wide range of mobility, including rotation and tilting, making it perfect for banking and ditching operations.
The machine is designed with large, openable rear doors that provide easy and direct access to major engine components and cooling systems for routine maintenance.
Equipped with Stage III engine and Variable Horse Power technology, the G929 optimizes fuel consumption based on the workload requirements.
