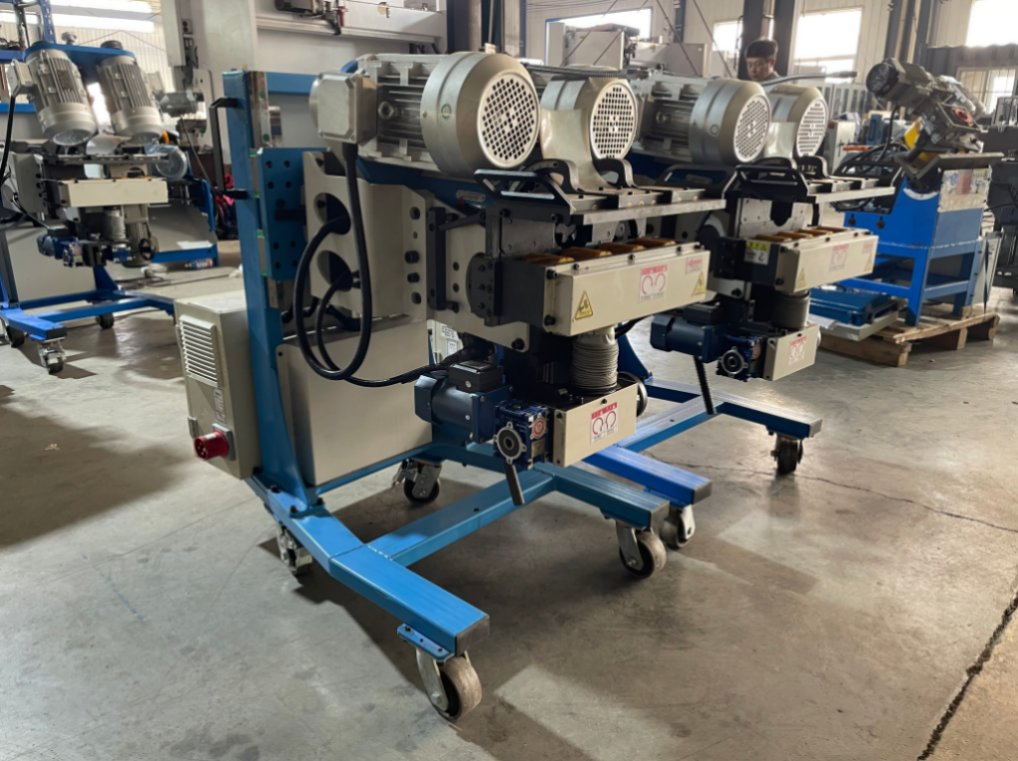

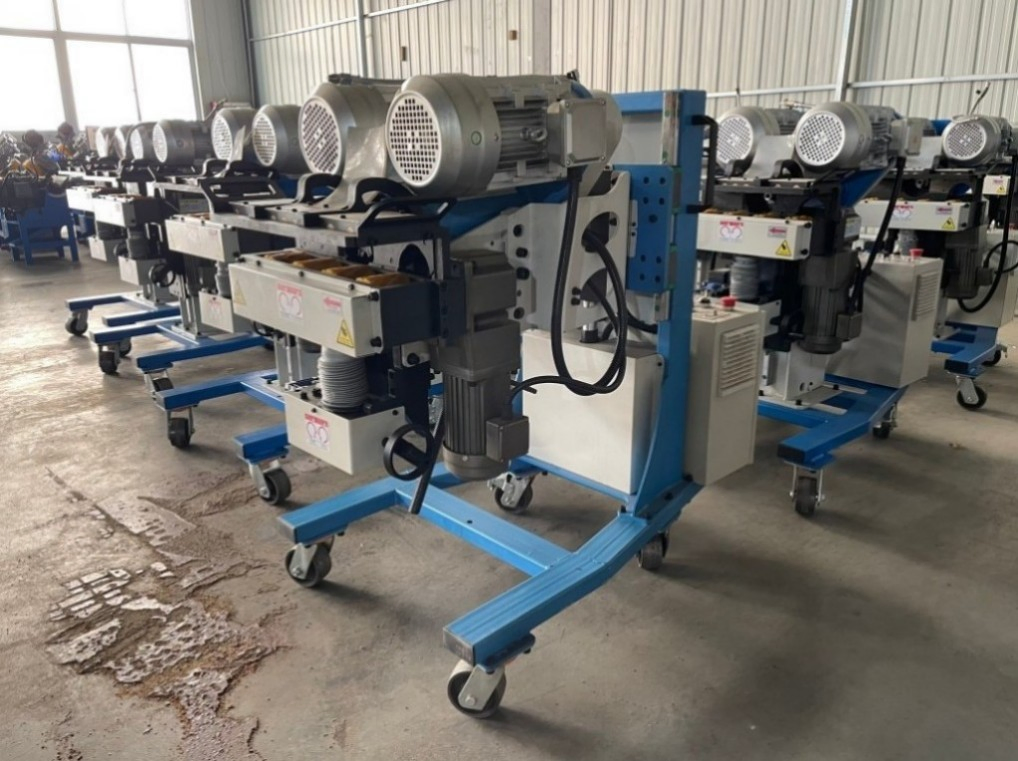

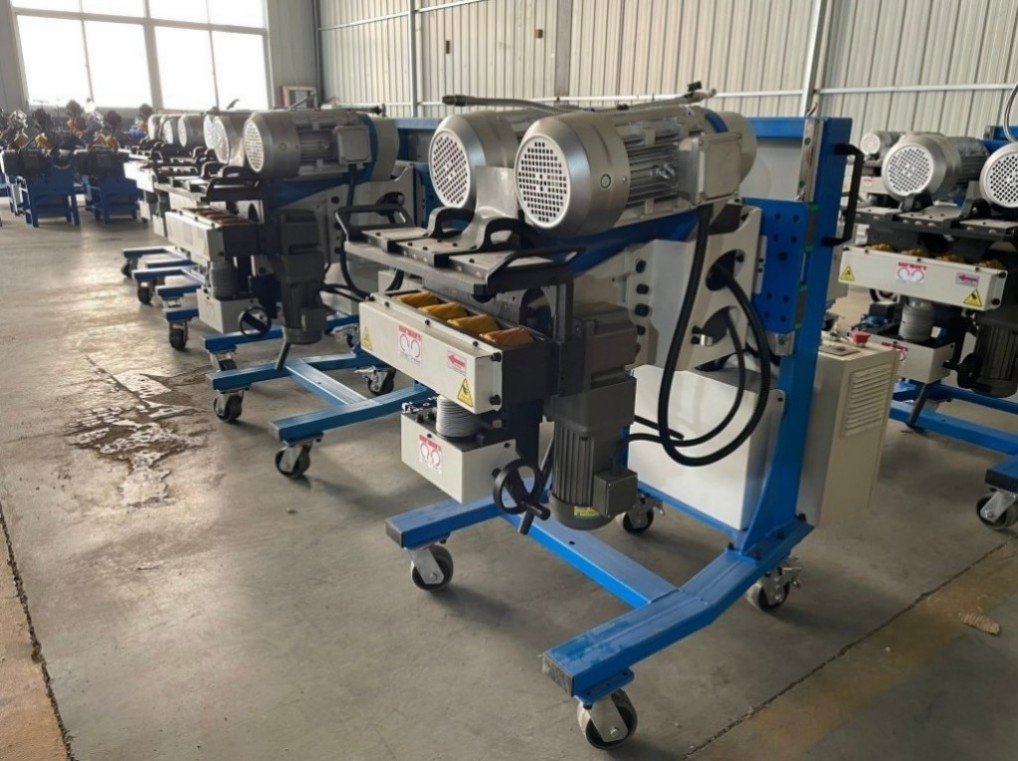

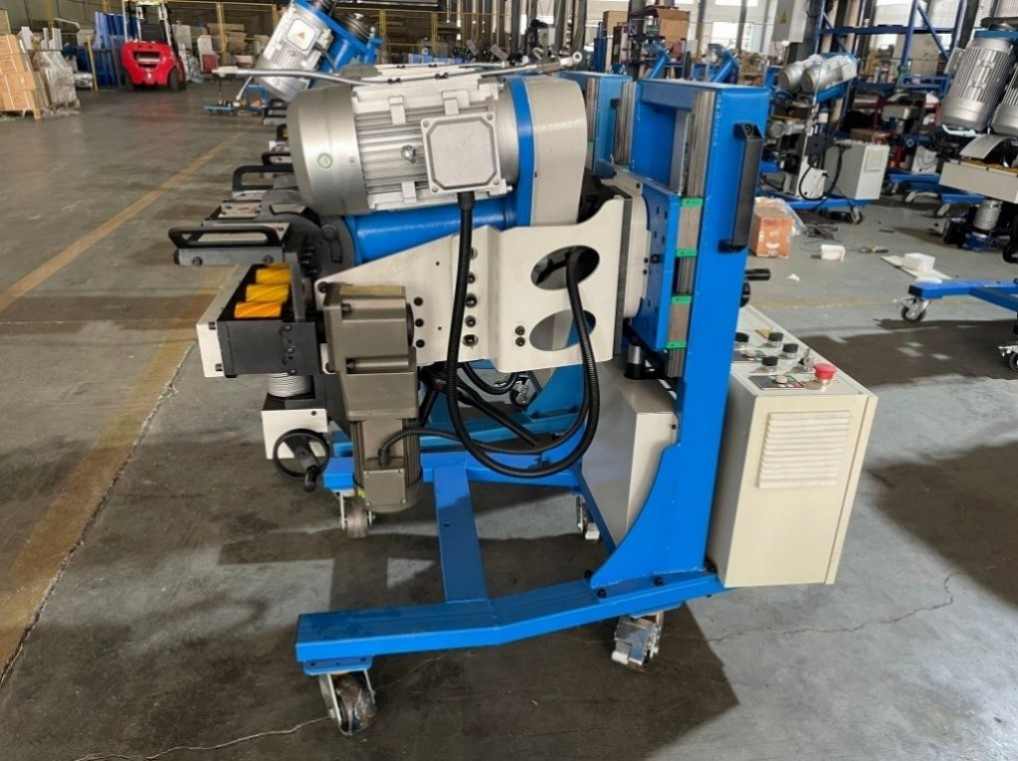

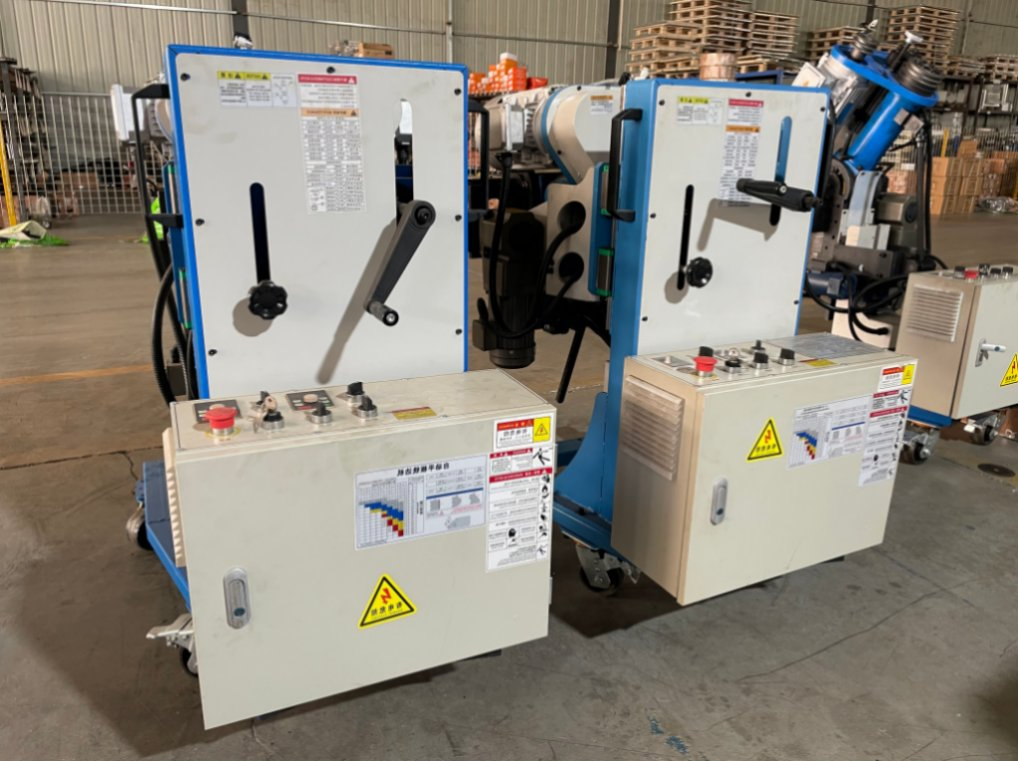

Dual-Sided Precision Edge Chamfer Tool for Bevel Finishing

1

Overview & Basic Info

Model NO.

HW-FZ100

Type

Plate Beveling Machine

Layout

Horizontal

Automatic Grade

Automatic

Power Source

Electric

Certification

CE, ISO, EPA

Plate Thickness

4-80 mm

Bevel Angle

0-75°

Spindle Speed

1500r/Min

HS Code

8461909000

2

Product Description

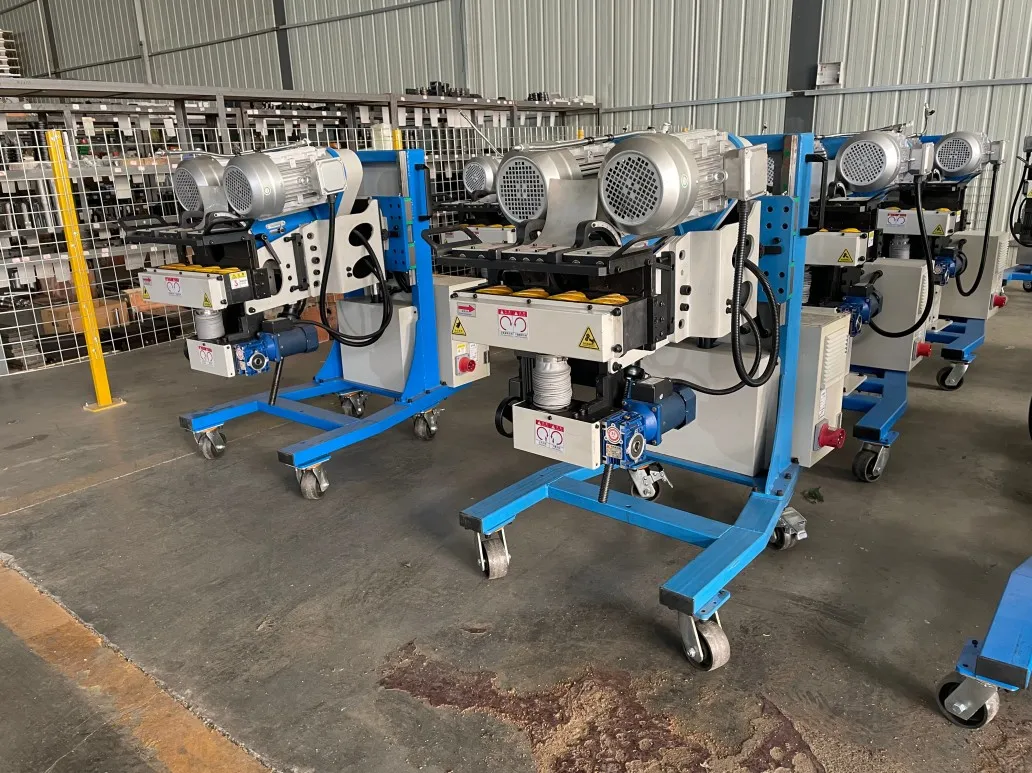

Product Advantages

✓ No need to flip large workpieces during processing.

✓ Cold cutting processing, no oxidation or deformation.

✓ Satisfies welding technology requirements for non-destructive testing.

✓ Adjustable processing speed for optimal control.

✓ Securely locked spindle with easy release mechanism.

✓ Electric lifting for effortless operation.

✓ Compact structure and higher efficiency than manual chamfering.

3

Technical Parameters

Specifications	Details
Model	HW-FZ100 self-propelled double-sided beveling machine
Power Supply	380V/50Hz three-phase AC power
Motor Power	Total: 6.59KW (Main: 3KW*2, Lift: 0.2KW)
Spindle Speed	1500r/min
Groove Speed	0.7-1.5 meters/minute (Adjustable)
Plate Thickness	4-80mm
Groove Angle	0°-75° (Adjustable)
Knife Head	FMZ88R-80-27-SN12-06T
Groove Type	K/V/X/Y-shaped, side groove, uphill opening
Processing Material	Carbon steel, stainless steel, alloy steel, cast iron, aluminum, etc.
Groove Smoothness	Ra3.2-6.3

4

Packaging & Logistics

5

Frequently Asked Questions

Q: Are you a professional manufacturer of beveling machines?

A: Yes, we are a professional manufacturer established in 2012. Our facility integrates production, R&D, and after-sales service to provide high-quality machinery solutions.

Q: What is the typical delivery time after payment?

A: Standard models are usually in stock and ship within 3-5 working days. For customized machinery, the lead time is approximately 10-15 days.

Q: What kind of after-sales technical support do you offer?

A: We provide a one-year warranty, lifelong technical support, and free online training. Our engineers are available for remote or on-site guidance if needed.

Q: How is the quality of the machines ensured?

A: All machines are manufactured under ISO9001 standards and hold CE certification. Every unit undergoes rigorous testing before delivery.

Q: Can you customize machines for specific project requirements?

A: Absolutely. Our R&D team can design tailor-made beveling solutions based on your specific plate size, angles, and material requirements.

Q: What materials can your beveling machines process?

A: Our equipment is designed to handle a wide range of materials including carbon steel, stainless steel, alloy steel, cast iron, and aluminum plates.
