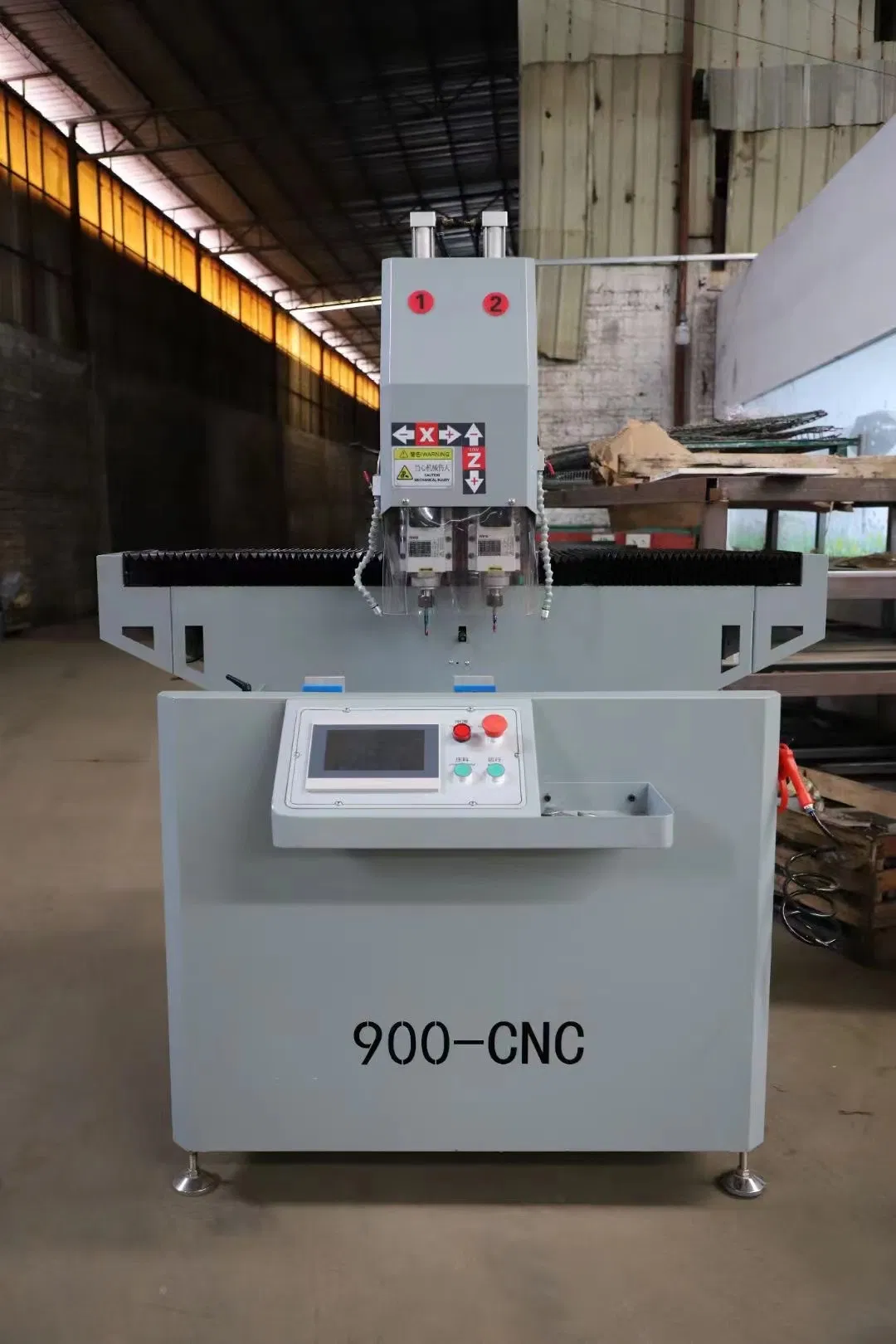

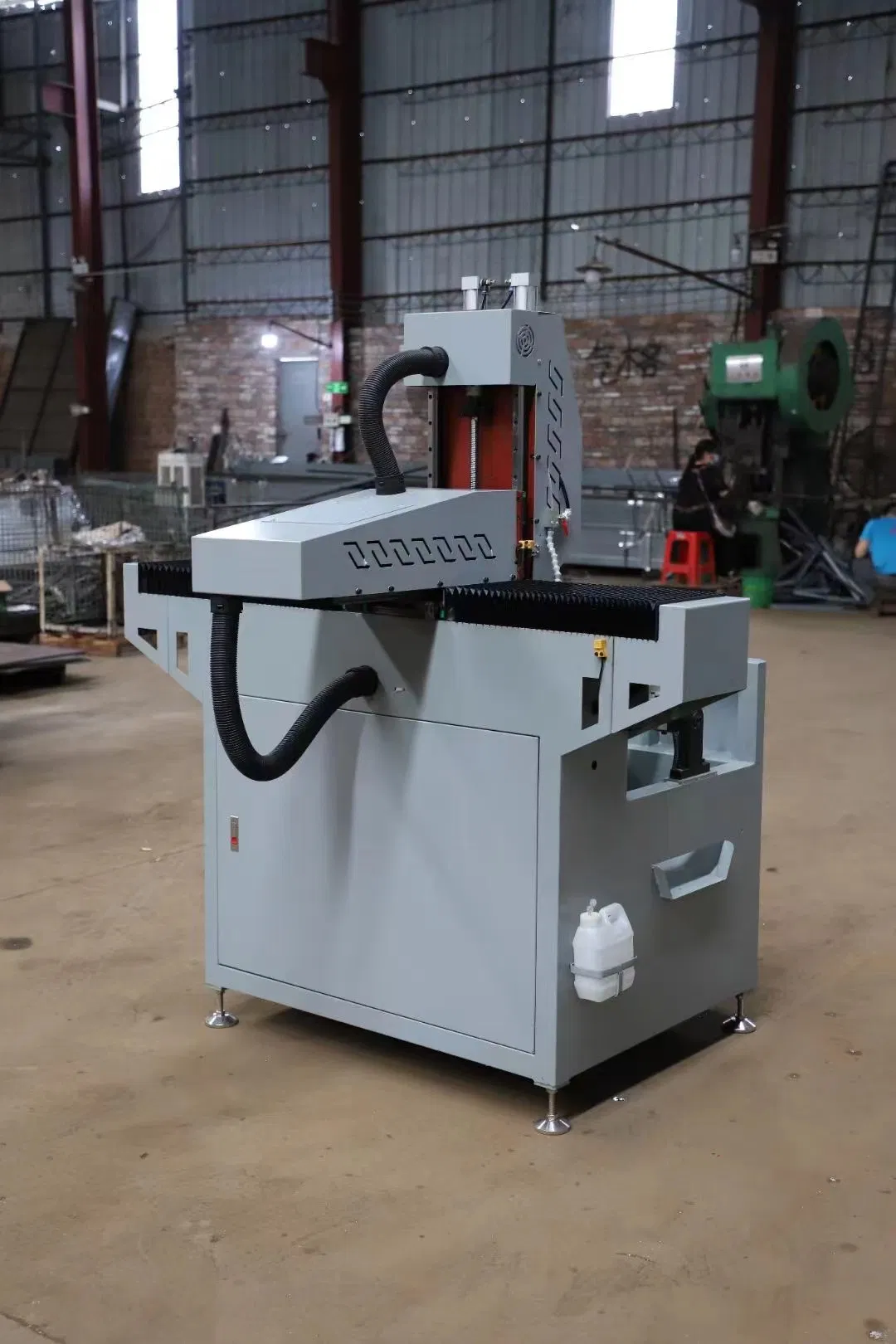

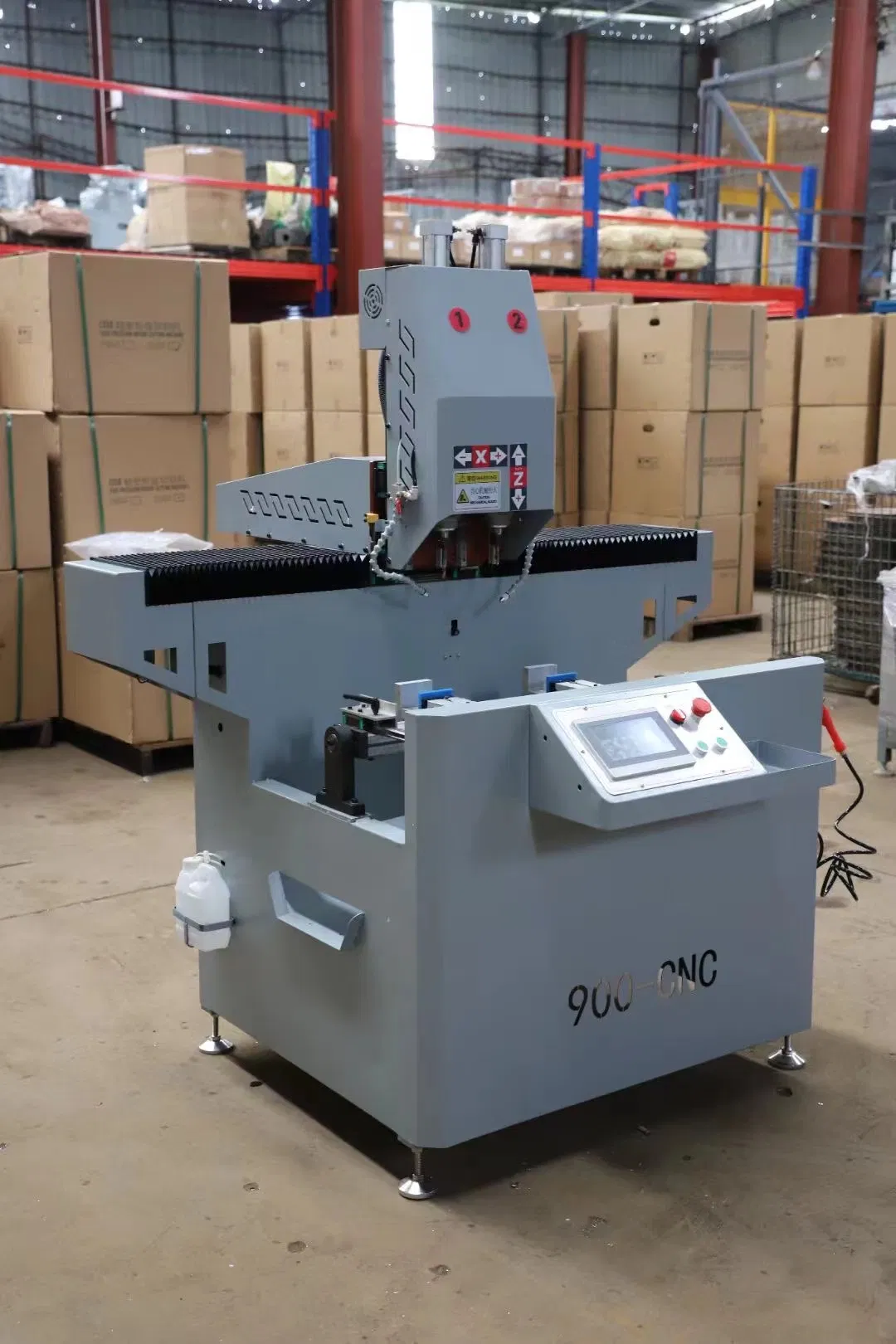

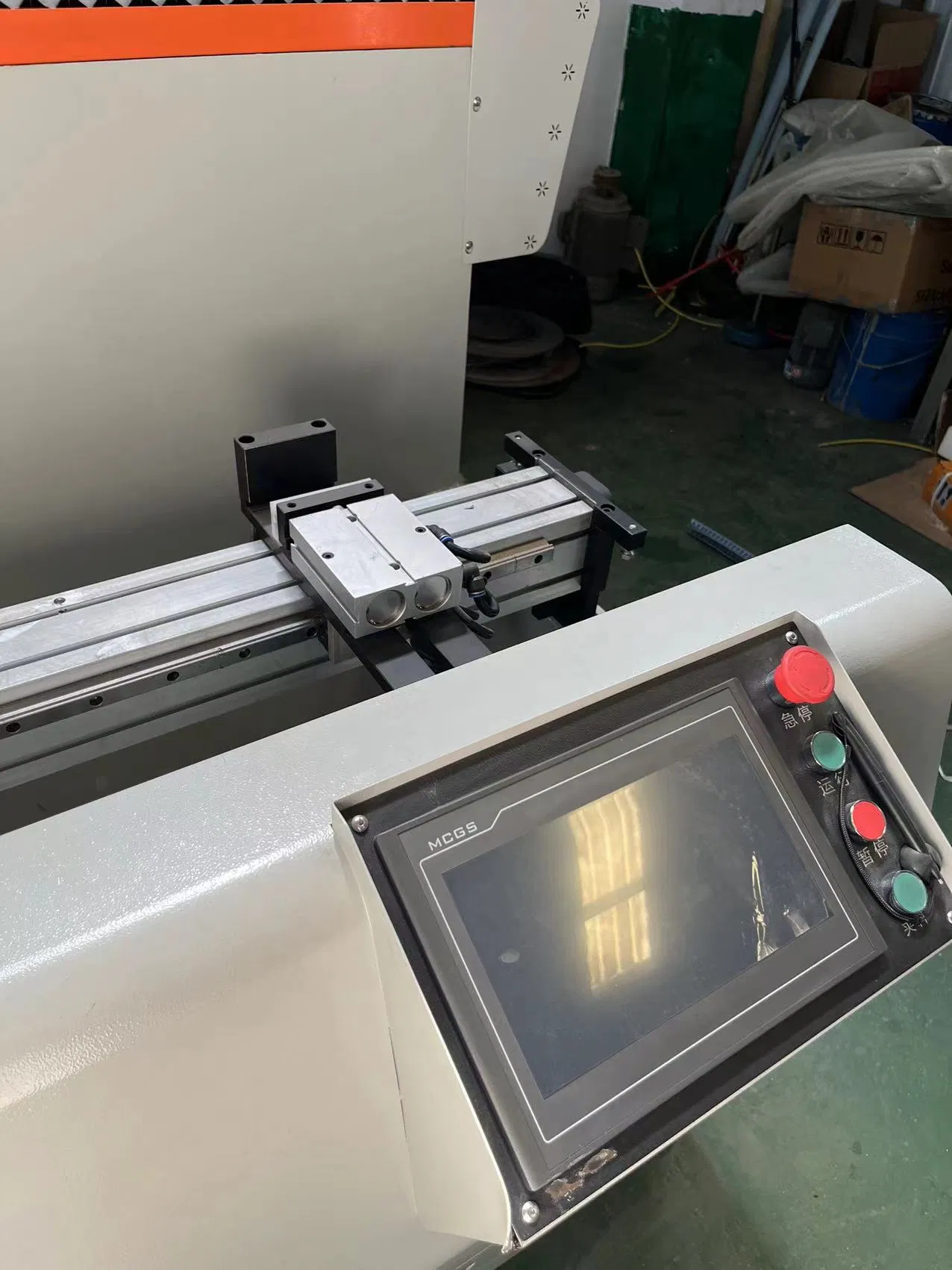

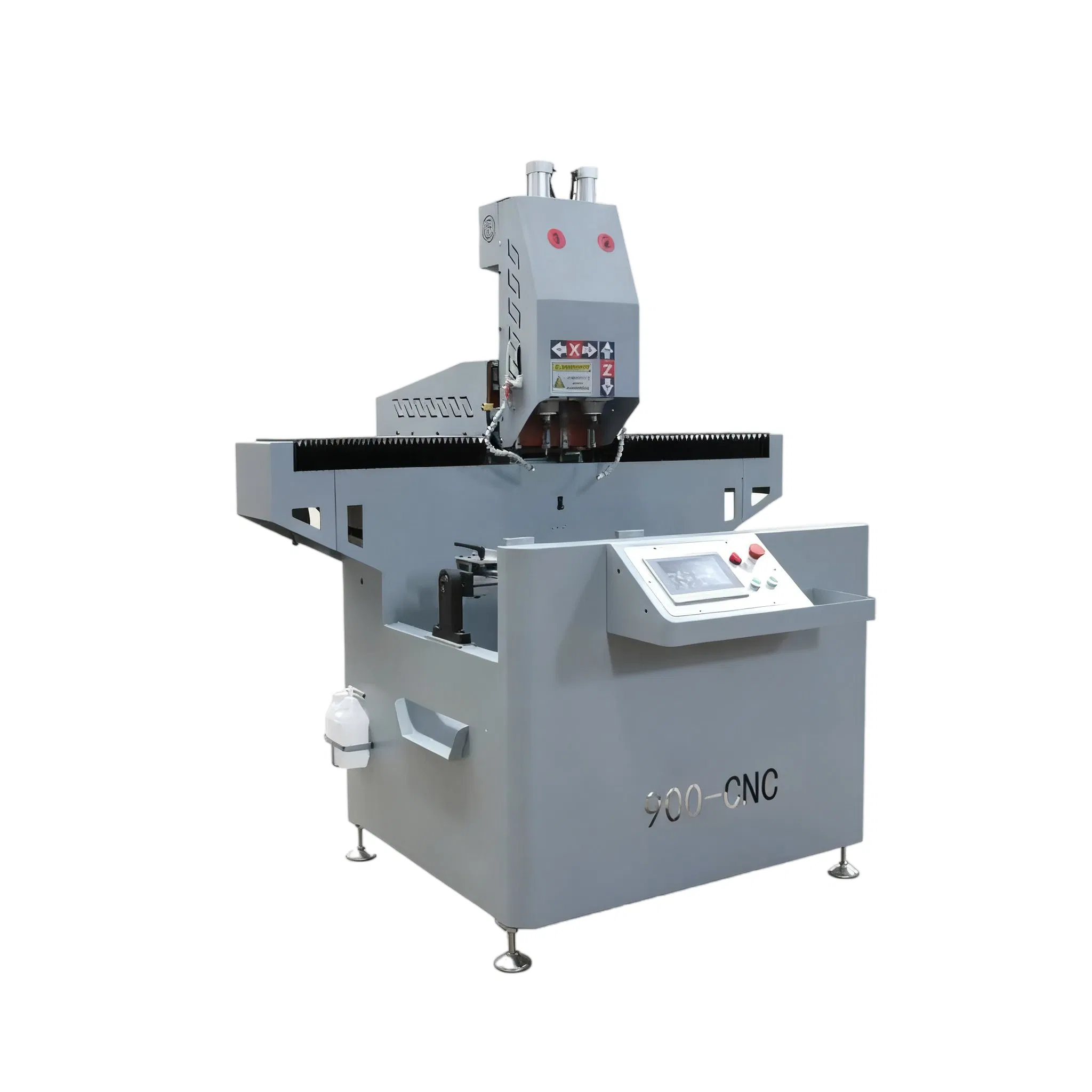

Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
1 / 5
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing
Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing

Double Head CNC Milling Drilling Machine for Aluminum PVC UPVC Door Window Profiles High Precision Processing

After-sales Service: 24-Hour Online
Warranty: 2 Years
Condition: New
Send Inquiry

Product Description

Basic Specifications

Model NO.
LSF-CNC-900
Certification
ISO
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Spindle Motor Power
3.5kw+2.2kw
Spindle Motor Speed
0-18000rpm
Working Air Pressure
0.6-0.8hpa
X-Axis Travel
900mm
Y-Axis Travel
280mm
Z-Axis Travel
190mm
Working Surface
Three-Sided Flip
Max Drill Depth
60mm
Weight
280kg
Processing Station
Dual Heads/Auto Switching
Specification
1850*1580*1620mm

Product Introduction

LSF-CNC-900 CNC Drilling and Milling Machine for Door and Window

No. Parameter Item Details
1Power supply380V/50HZ
2Spindle motor power3.5kw+2.2kw
3Spindle motor speed0-18000rpm
4Working air pressure0.6-0.8HPa
5X-axis travel900mm
6Y-axis travel280mm
7Z-axis travel190mm
8Support working surfaceThree-sided flip
9Drill bit deepest point60mm
100-degree Surface CapacityH: 100mm / W: 130mm
11-90-degree Surface CapacityH: 130mm / W: 100mm
1290-degree Surface CapacityH: 130mm / W: 130mm
13Overall dimensions1850 * 1580 * 1620mm

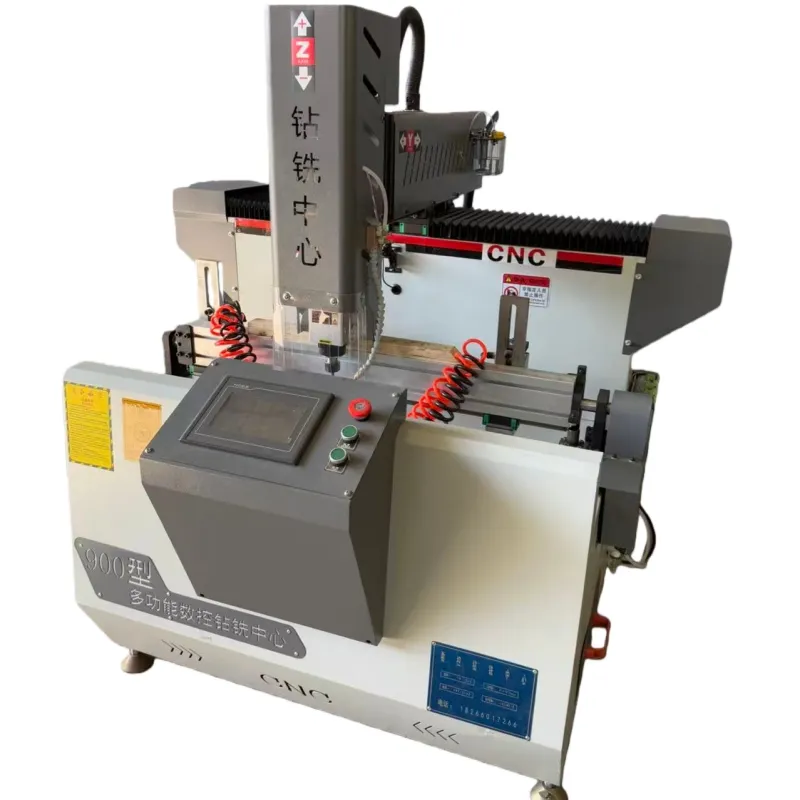

CNC Milling Machine
✓
Suitable for milling various types of holes and grooves in aluminum alloy profiles.
✓
High-precision linear guide pairs, ball screws, gear ball racks and imported servo motors ensure smooth movement.
✓
Reversible worktable allows drilling and milling operations on three surfaces with a single clamping.
✓
Imported high-speed electric spindle features low noise and strong cutting capacity.

Product Gallery

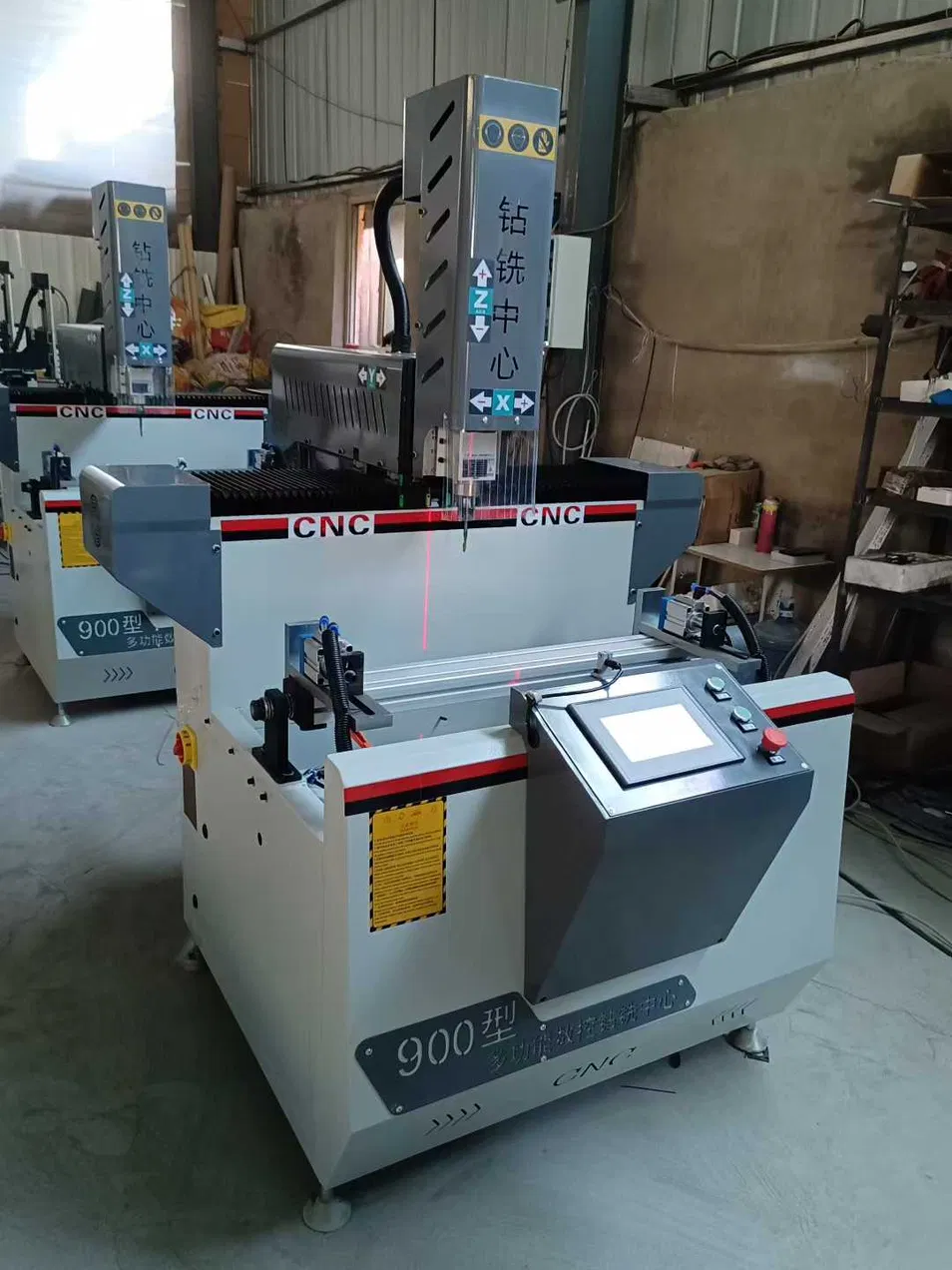

Processing View 1

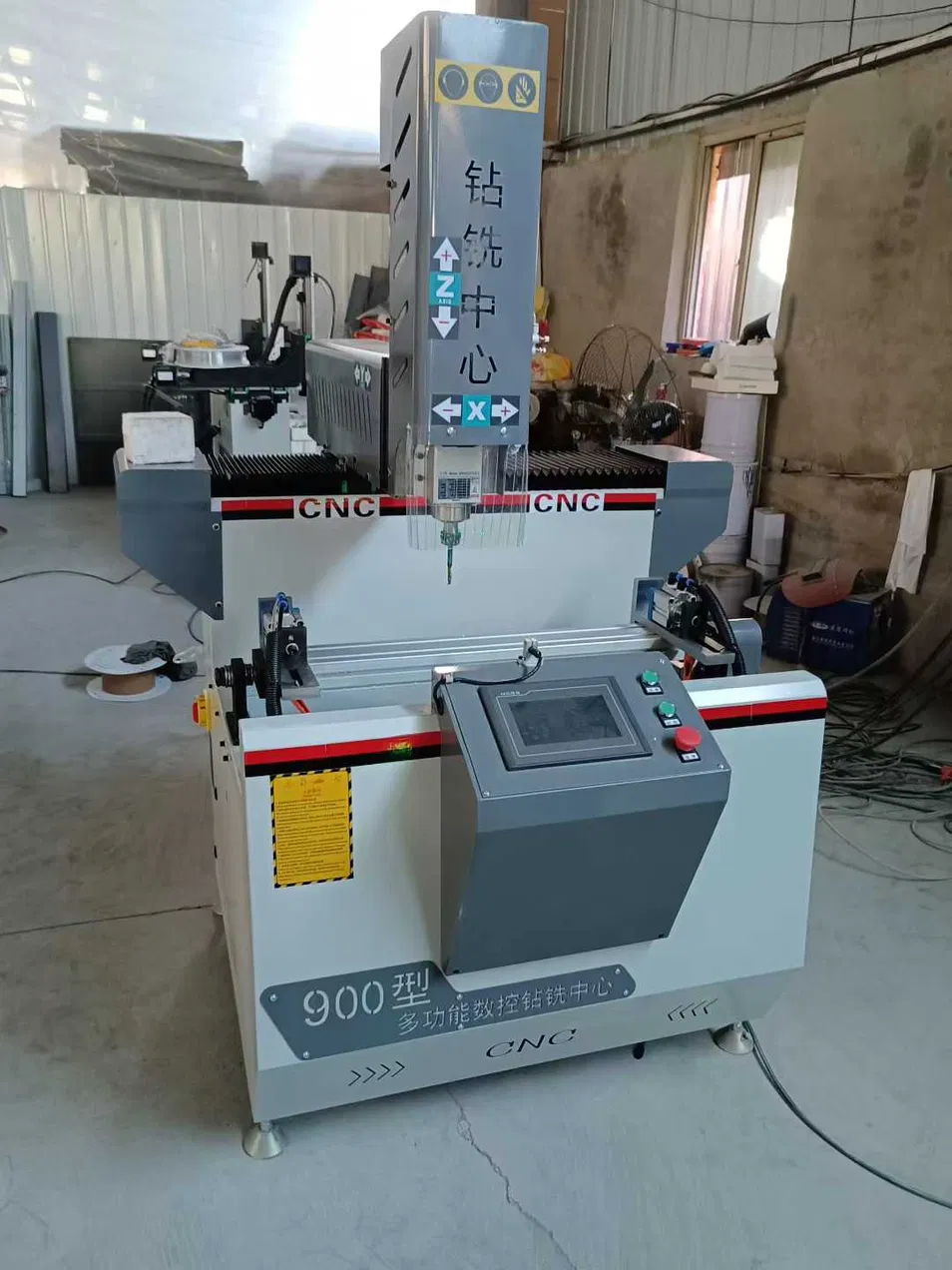

Processing View 2

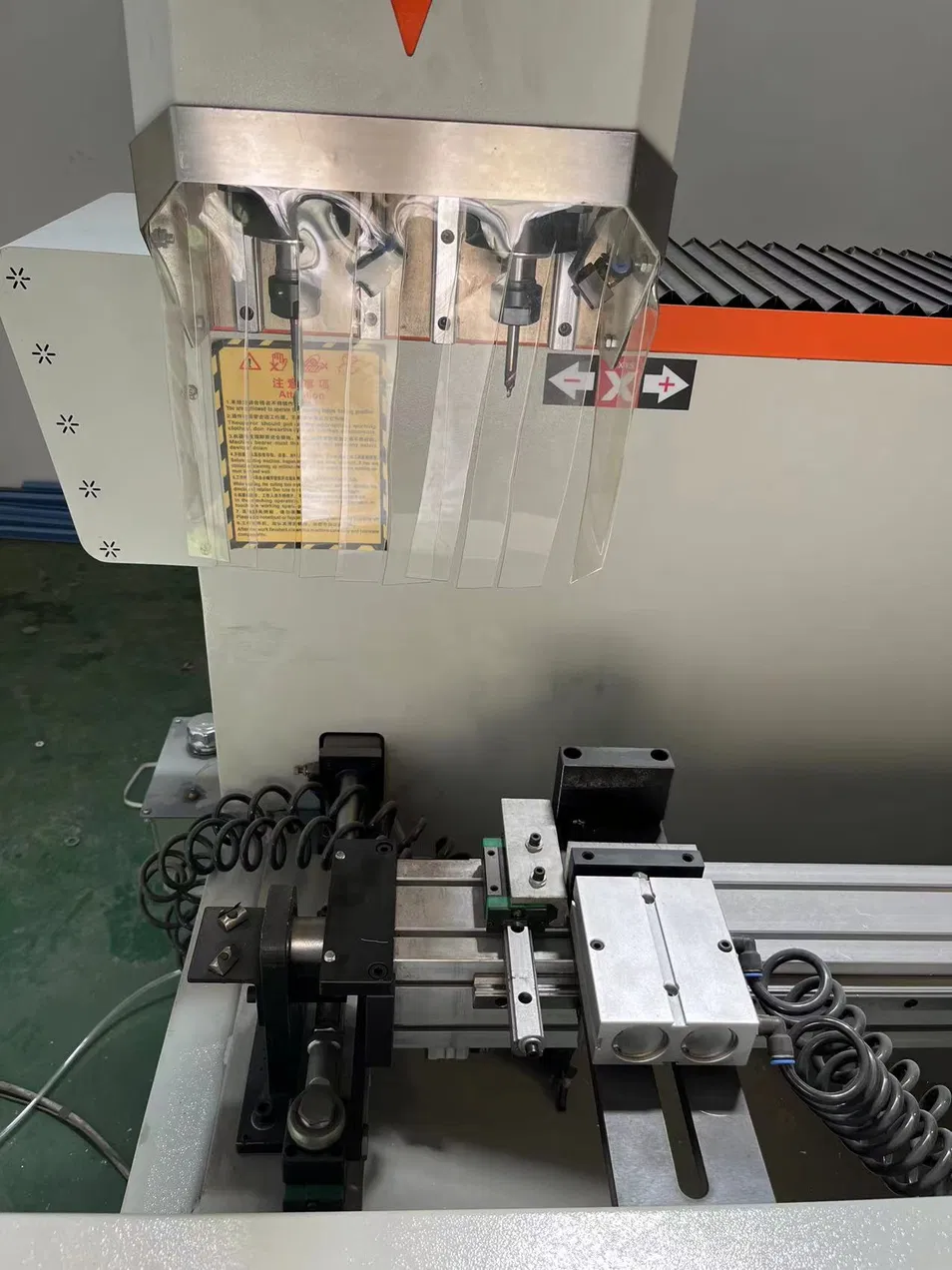

Processing View 3

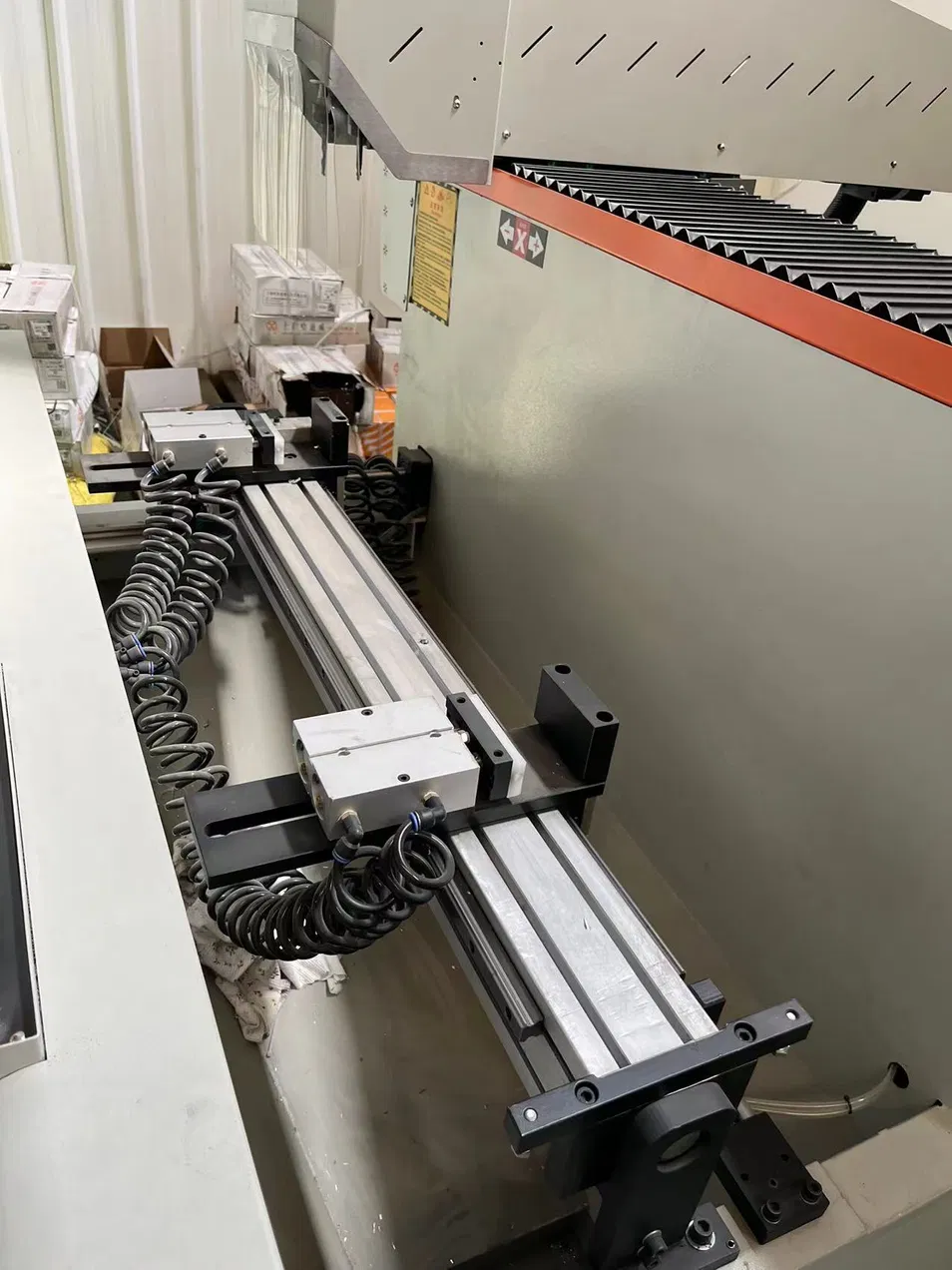

Processing View 4
Processing View 5

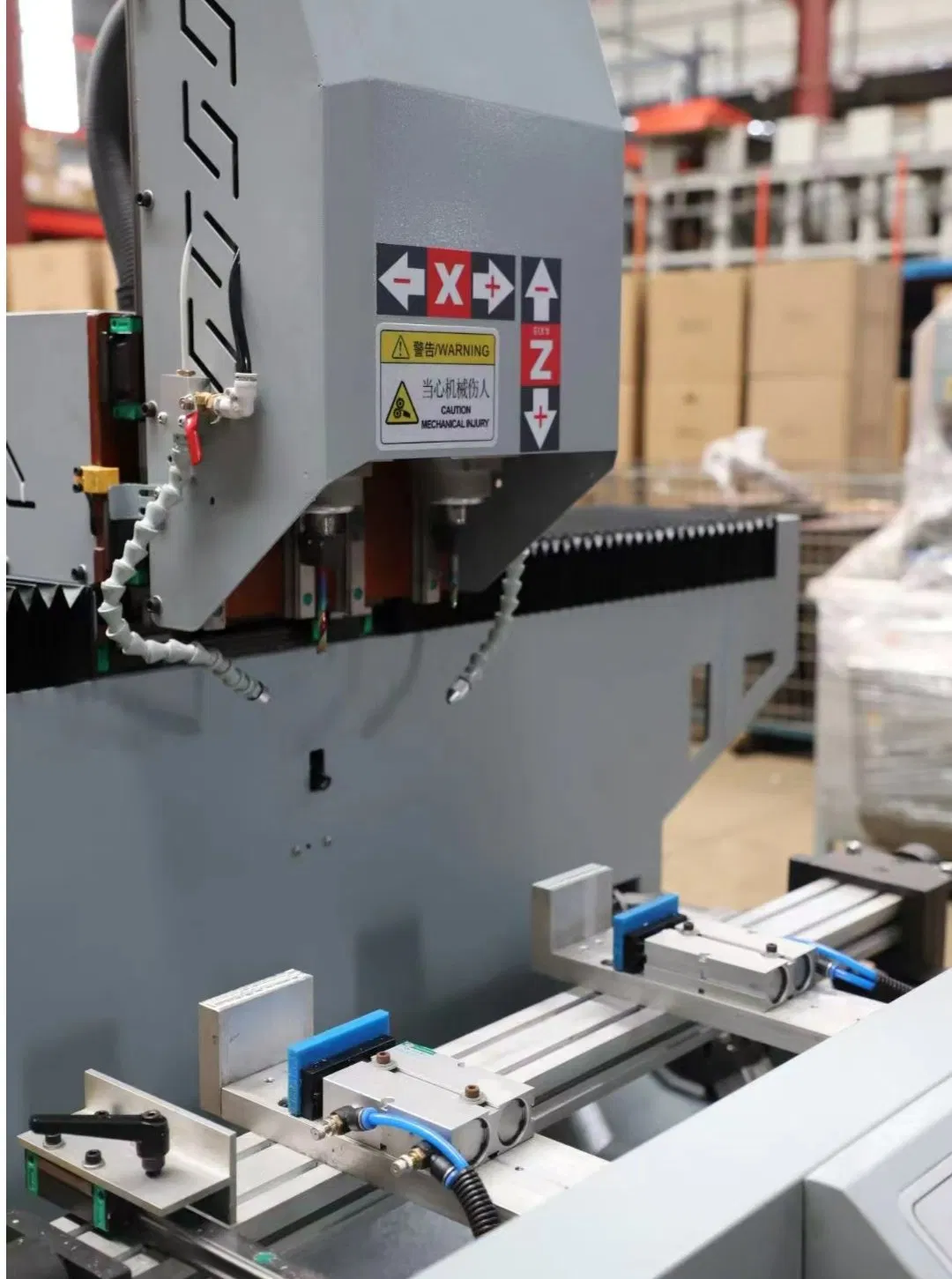

Processing View 6

Manufacturing Excellence

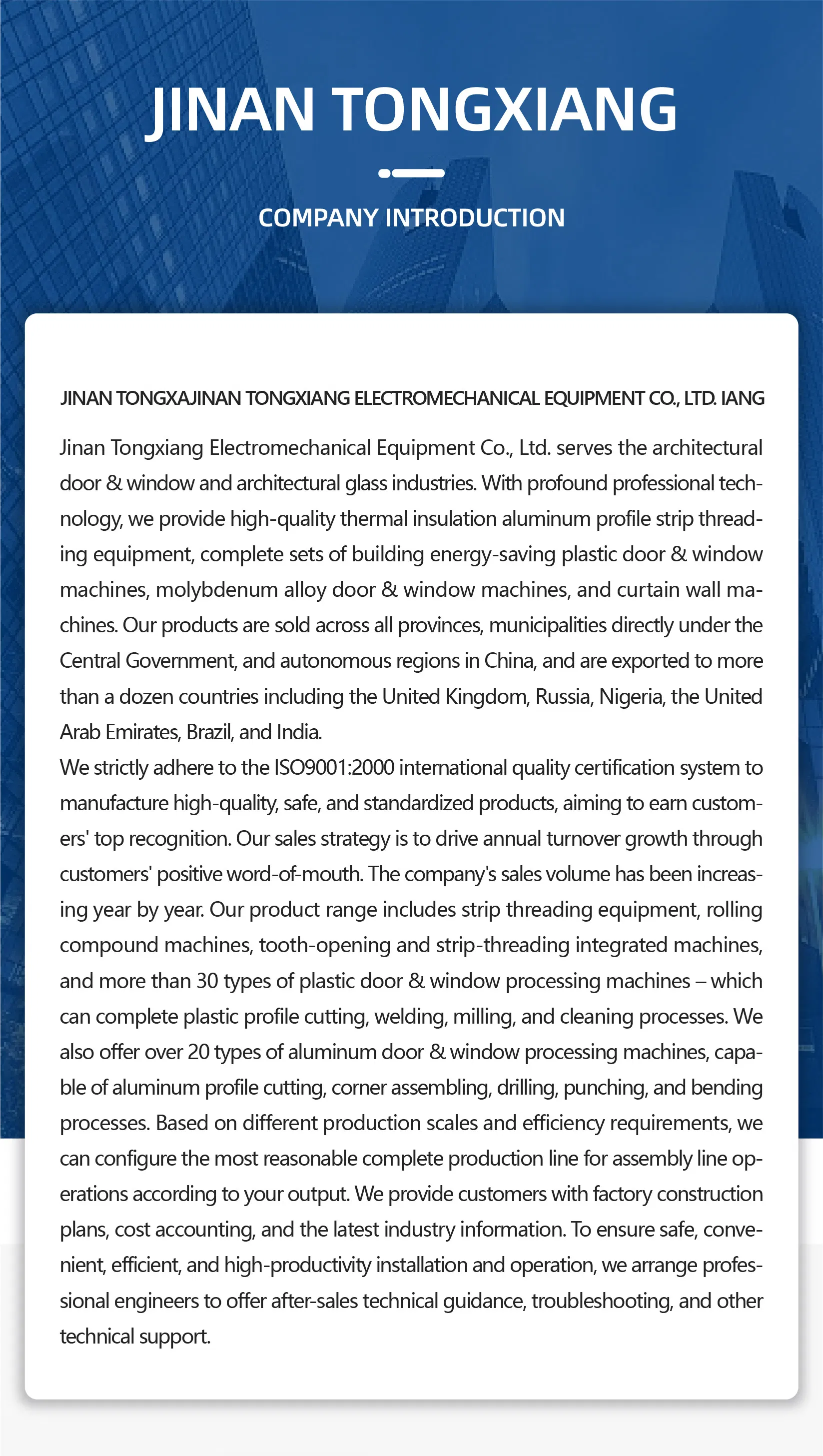

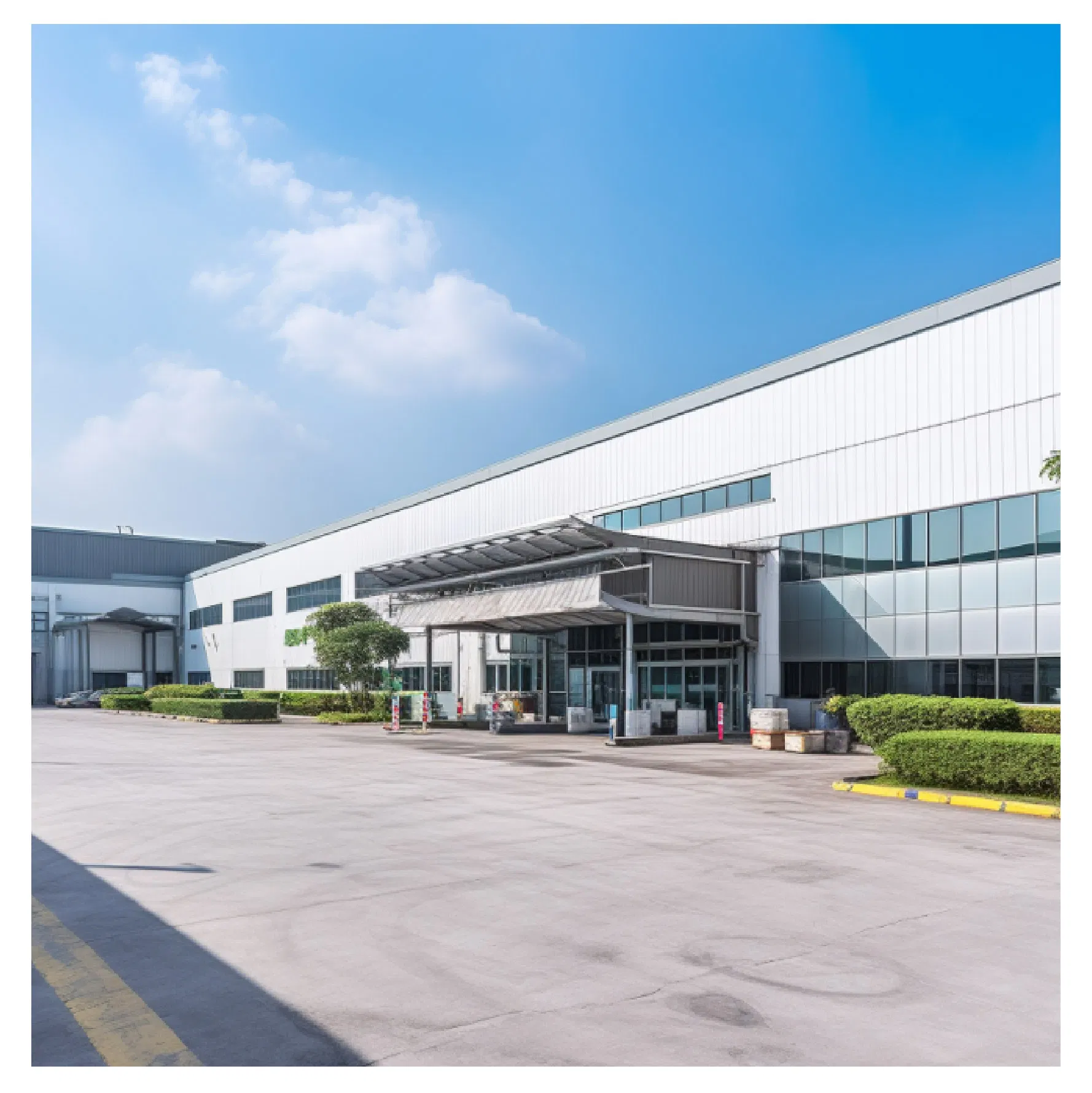

Production Line Factory Overview
Certifications
Client Exhibition

Packaging & Shipping

Packaging
Shipping

Frequently Asked Questions

1. What materials is this CNC machine suitable for? The LSF-CNC-900 is specifically designed for processing various holes and grooves in aluminum alloy, PVC, and UPVC door and window profiles.
2. How does the three-sided flip worktable enhance efficiency? The reversible worktable allows the operator to perform drilling and milling operations on three different surfaces of the profile with only one clamping action, significantly reducing setup time and increasing accuracy.
3. What ensures the high processing precision of the machine? The machine utilizes high-precision linear guide pairs, ball screws, gear ball racks, and imported servo motors to ensure smooth mechanical movement and tight tolerances.
4. What are the advantages of the high-speed electric spindle? The imported electric spindle operates at speeds up to 18,000 rpm, providing smooth rotation, low noise levels, and exceptionally strong cutting capacity for clean finishes.
5. Does the machine support automatic switching of tools? Yes, the machine features a dual-head processing station with automatic switching capabilities to streamline the production workflow.
6. What type of power supply and air pressure is required? The machine requires a 380V/50HZ power supply and a working air pressure between 0.6 and 0.8 HPa for optimal operation.
