White Natural UHMWPE Polyethylene Pads Plastic Suppliers PE 1000 Cutting Board

📊

Basic Information

Water Absorption

＜0.01%

Contraction Percentage

0.4%~1.4%

Tensile Strength

81~130MPa

Thickness

6-300mm

Application

Marine Fender, Liner, Mats

Features

Non Sticky, Wear Resistant, Anti Static

Shape

Sheet, Board, Panels, Blocks

Standard Sizes

3000*2500, 4500*2000, 2000*1000mm

📝

Product Overview

UHMWPE (Ultra High Molecular Weight Polyethylene) is a premium engineering plastic widely recognized as PE 1000. It is celebrated for its exceptional performance in demanding industrial environments. Available in natural, black, and various custom colors, our sheets vary in molecular weight to suit specific application needs, with high-level options reaching up to 600 million molecular weight.

Key Performance Features:

Excellent abrasion resistance
Low coefficient of friction
Zero moisture absorption
Corrosion and chemical resistant
Superior noise abatement
Exceptional impact strength
Cryogenic stability to -200ºC

📐

Standard Size Specifications

Length (mm)	Width (mm)	Thickness (mm)
6000	2000	6-300
3000	1500	6-300
4700	1200	6-300
5000	1300	6-300
4500	2000	6-300
3050	1220	6-100

🔬

Technical Data Sheet

Property	Testing Method	Value
Molecular weight (1E6 g/mol)	ASTM D4020	3-5
Density (g/cm3)	ISO 1183-1	0.93-0.96
Dynamic coefficient of friction	ISO8295	<=0.15
Notched Impact Strength (kj/m2)	ISO 11542-2	100-170
Hardness (Shore D)	ISO868	60-70
Water absorption	ASTM D570	<=0.1
Operating Temperature (°C)	-	-80 to +80

🎨

Available Types & Colors

Material Variants:

Anti-static & Flame-retardant
Self-lubricating
Ceramic or Glass filled
Fender Grade & Boron Plate
Anti-slip Surface

Color Options:

Single colored (White, Black, Green, etc.)
Dual colored (Multi-layered)
Rubber coated backing

📷

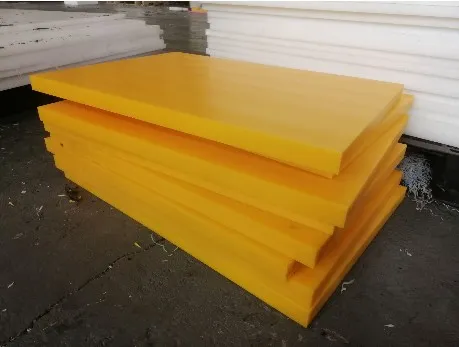

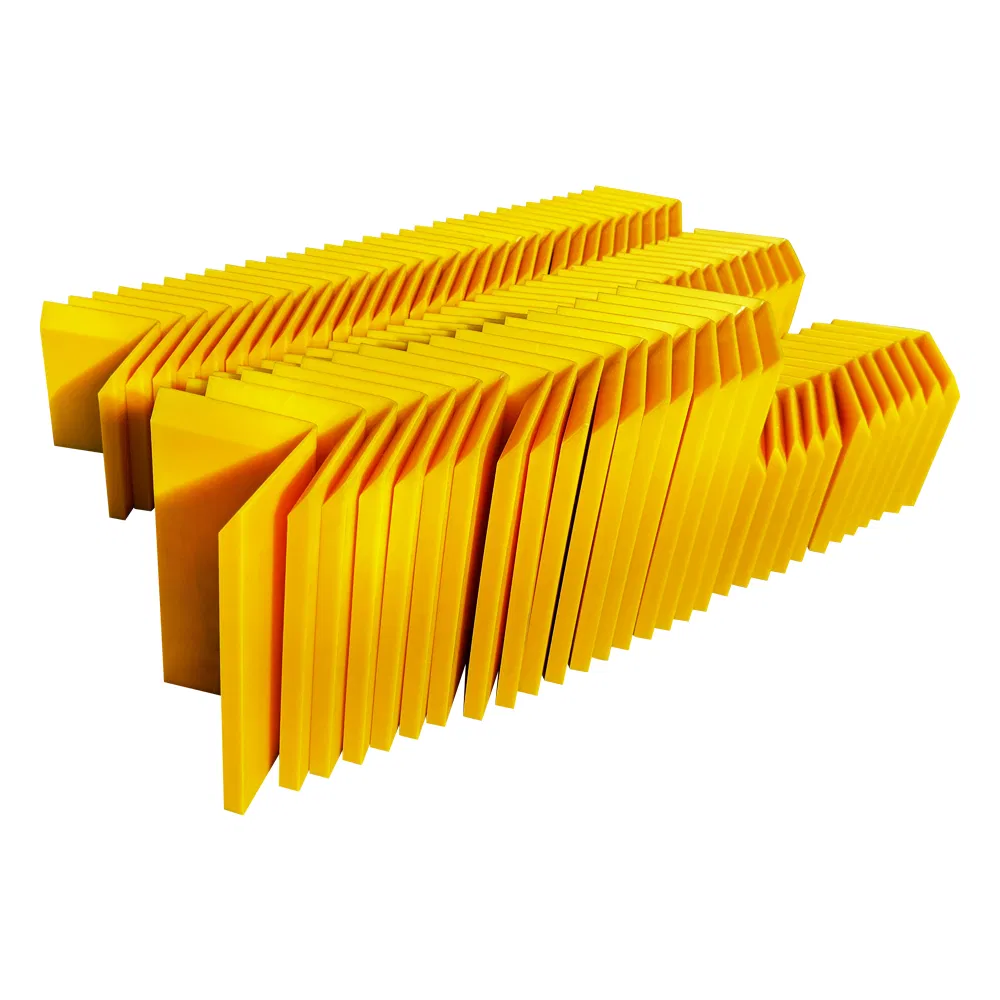

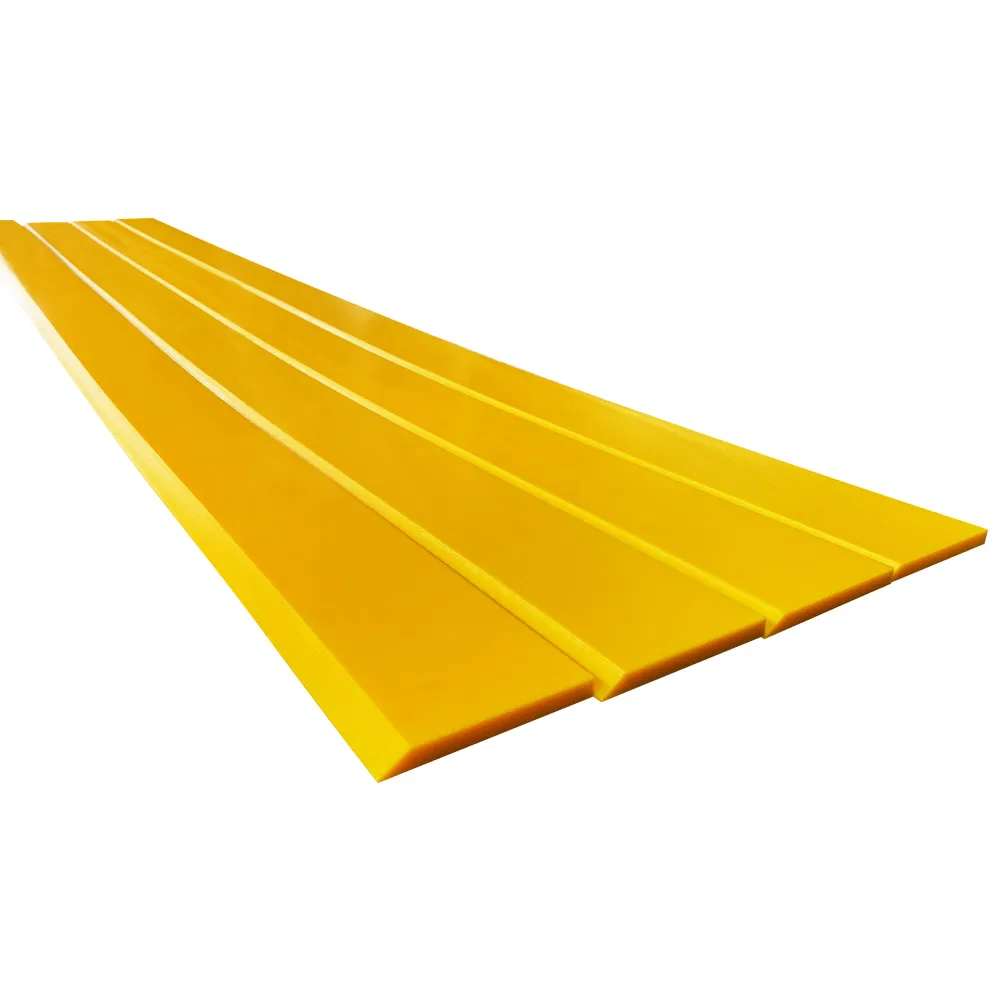

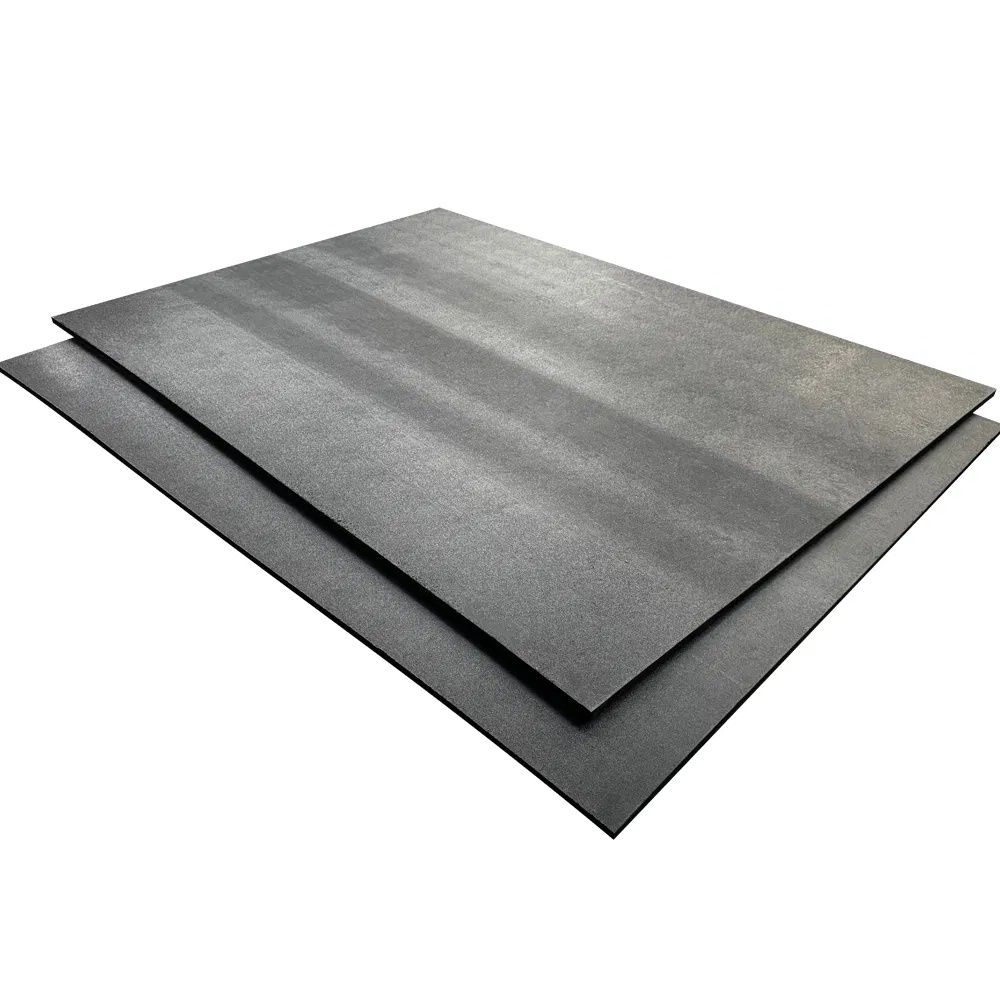

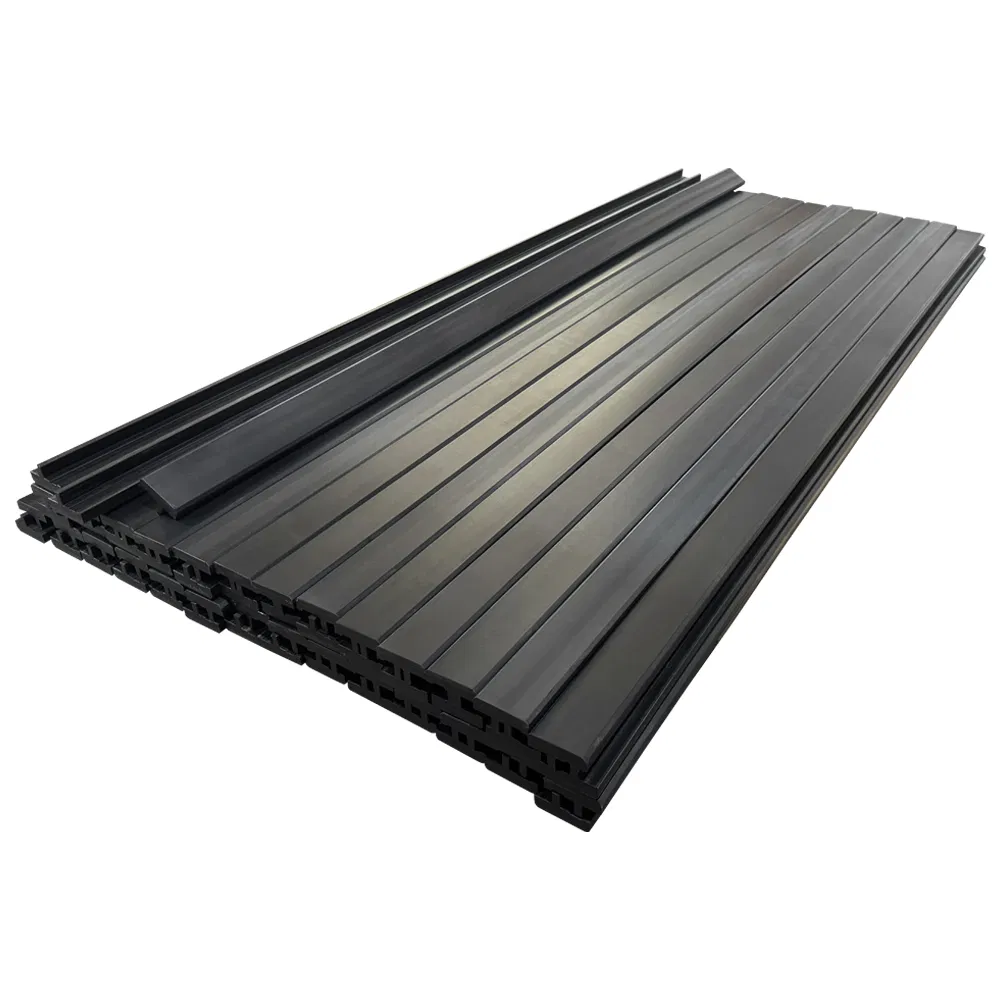

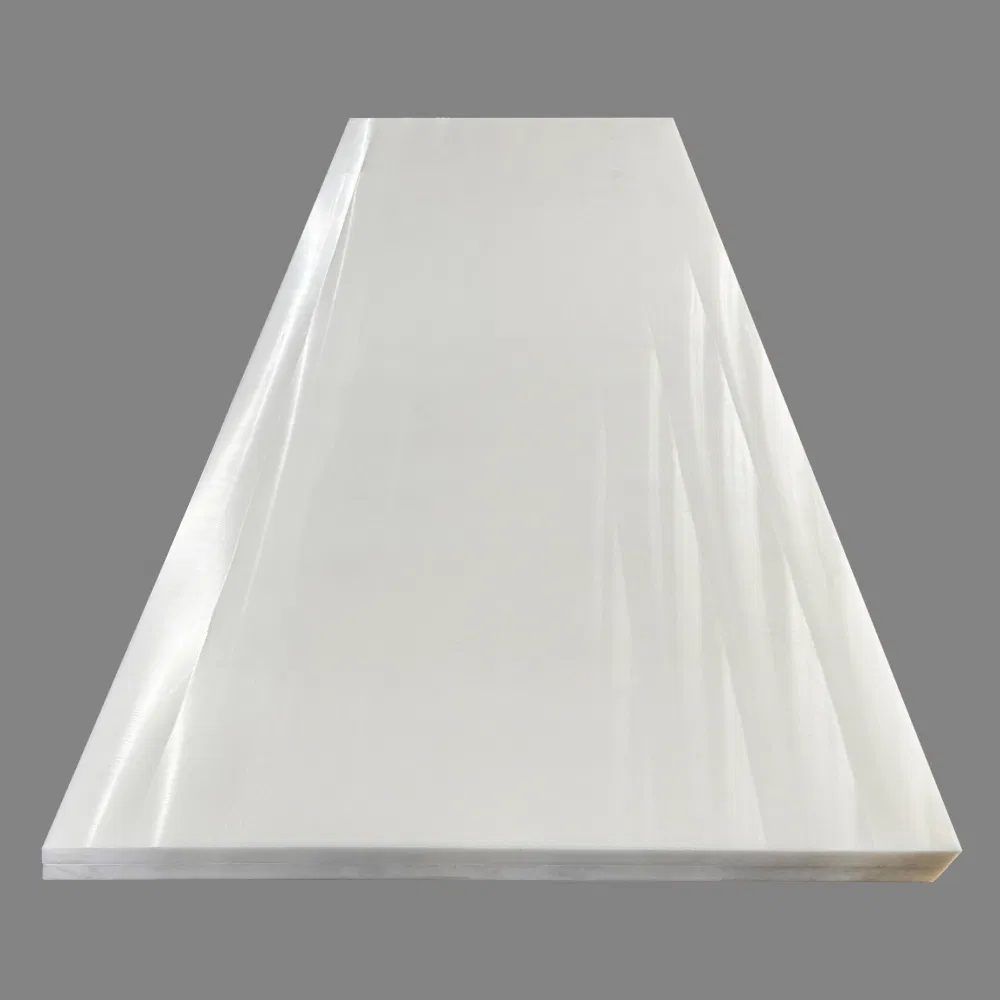

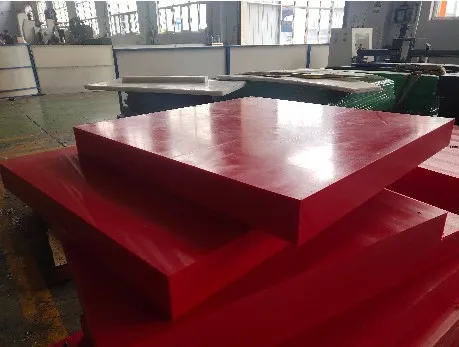

Product Gallery

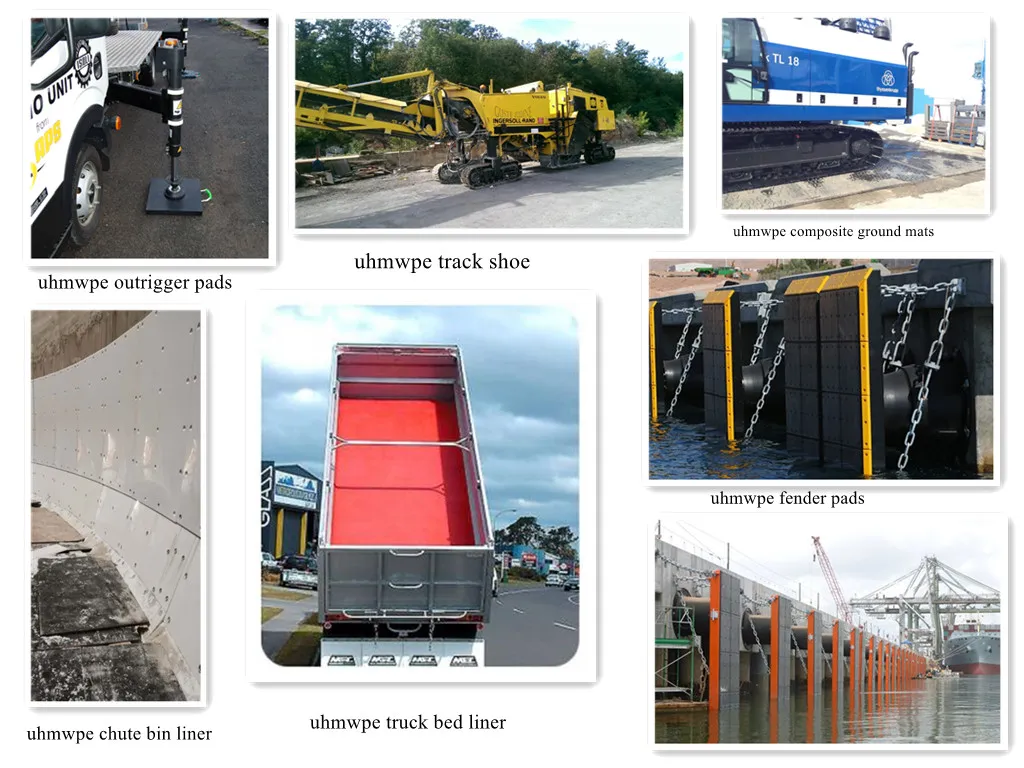

Application & Usage:

📜

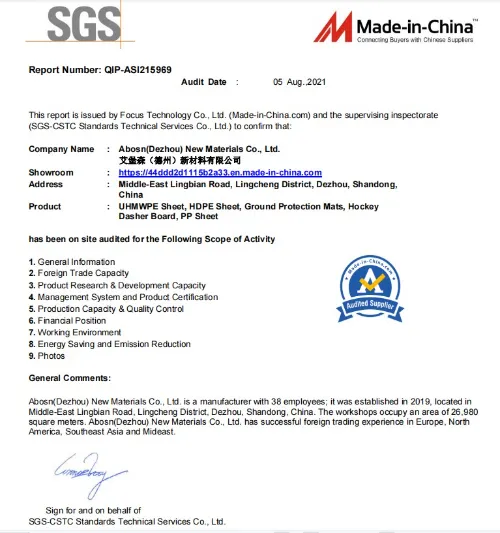

Quality Certifications

🏭

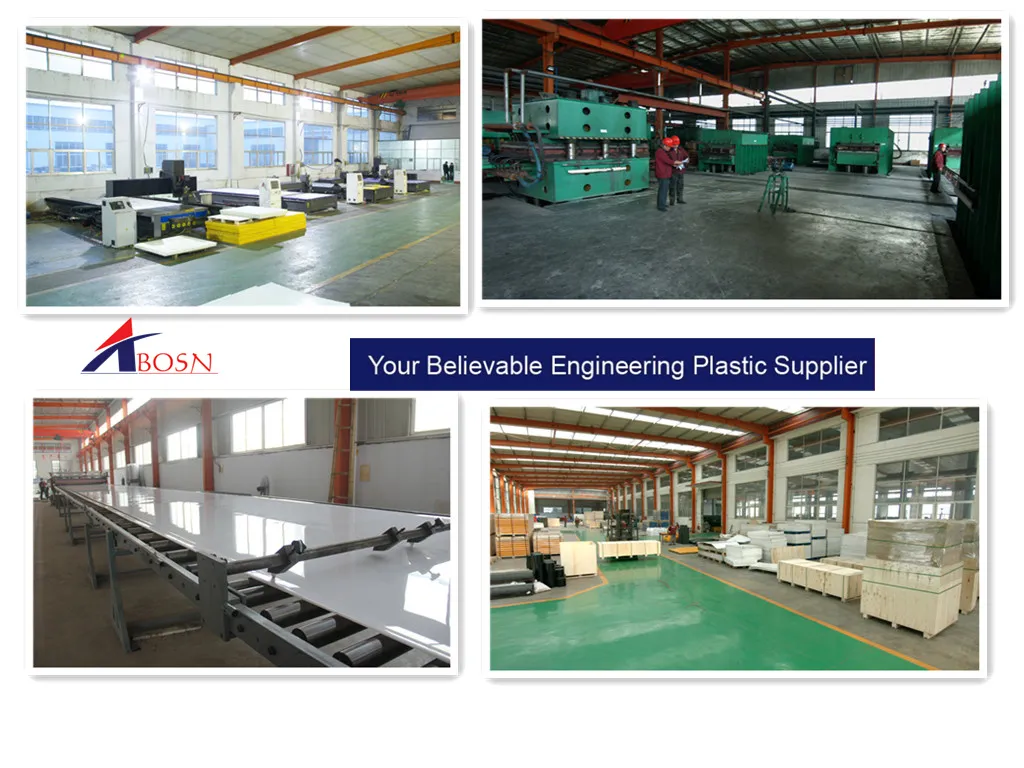

Manufacturing & CNC Machining

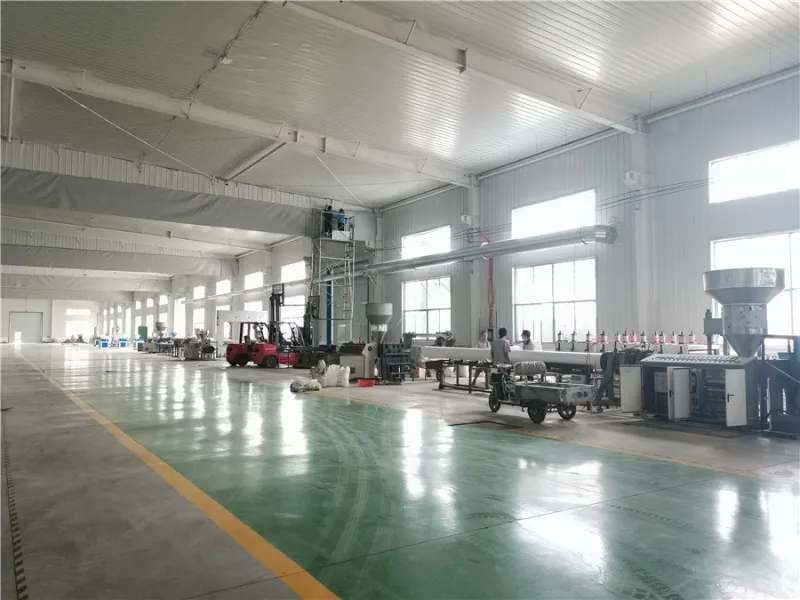

Our facility is equipped with advanced HDPE extrusion lines and high-pressure hydraulic presses for UHMWPE (PE 1000) plates. We utilize CNC lathes and milling machines to process custom-shaped parts and boards according to specific engineering requirements.

❓

Frequently Asked Questions

What is the difference between UHMWPE and PE 1000?

They are essentially the same. PE 1000 is the European designation for Ultra High Molecular Weight Polyethylene with a molecular weight of approximately 4.5 million or higher.

Does this material absorb water?

No, UHMWPE has a water absorption rate of less than 0.01%, making it ideal for marine and wet environment applications.

Can I request custom dimensions or CNC machined parts?

Yes, we provide full OEM services, including custom sizes and precision CNC machining for specialized industrial parts.

What is the maximum operating temperature for these sheets?

The recommended continuous operating temperature range is between -80°C and +80°C. However, it maintains key physical properties even down to -200°C.

Is the material resistant to chemicals?

Yes, UHMWPE is highly resistant to most corrosive chemicals, including many acids and alkalis, as well as organic solvents.

What colors are available?

Standard colors are White (Natural), Black, and Green. However, we can customize any color including yellow, blue, or dual-colored layered sheets upon request.
