Fibre Cement Board Eco Friendly Waterproof Exterior Wall with Fluorocarbon Coatings

📋 Basic Information

Customized

Delivery Time

7-15 days

Custom

Yes

MOQ

200 Square Meters

Transport Package

Plastic Wrap + Packing Belt + Normal Pallet

Trademark

OEM

Origin

Shandong, China

HS Code

6810999000

🏗️ Product Description

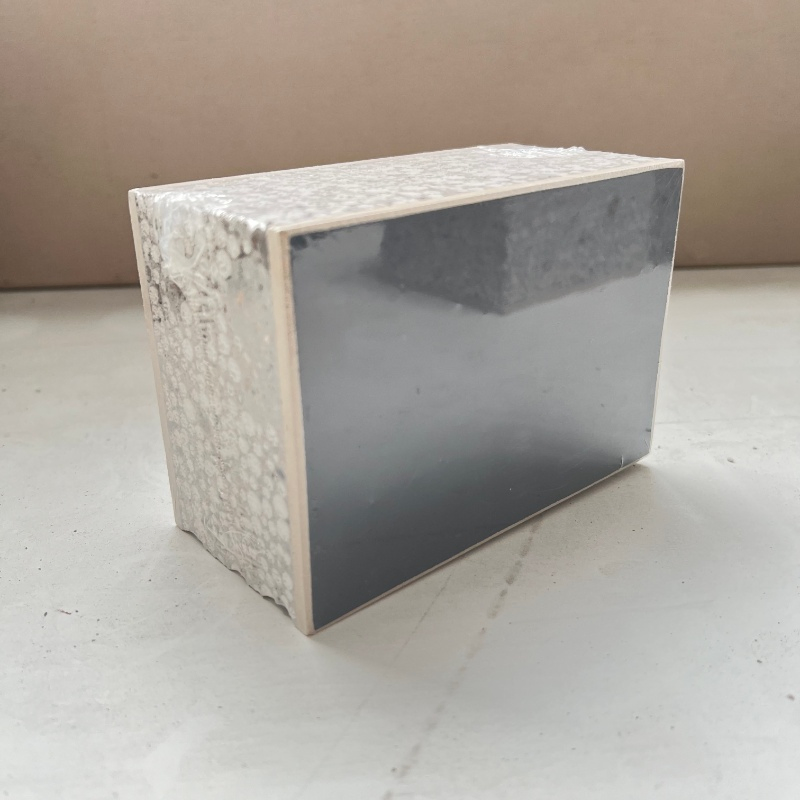

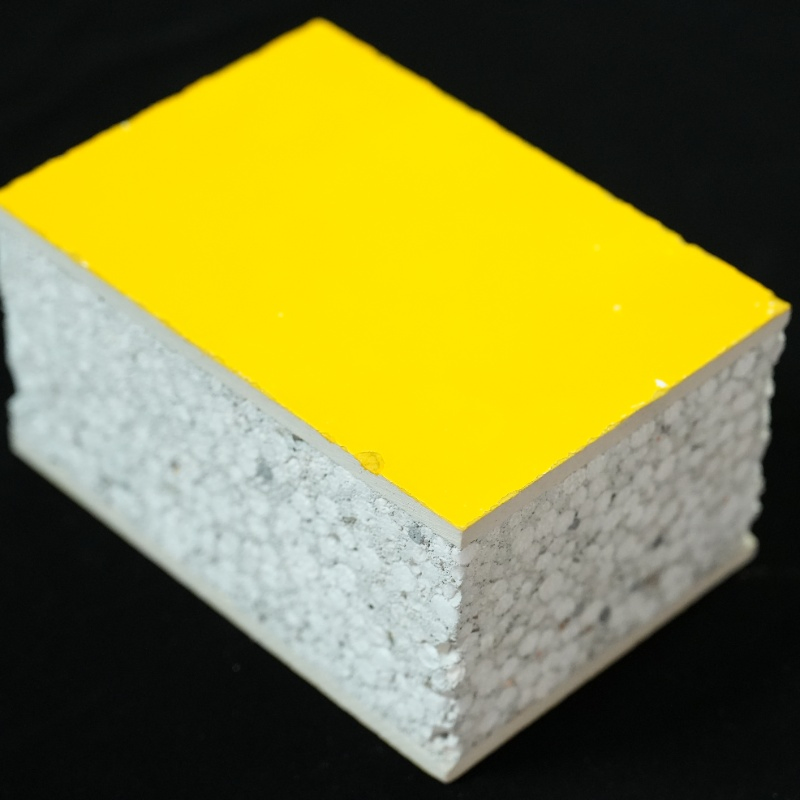

The High-Performance EPS Cement Sandwich Panel with Fluorocarbon Coating is an advanced prefabricated building material designed for durability, aesthetics, and energy efficiency. It combines high-strength fiber-reinforced cement board coated with fluorocarbon paint (FEVE-based fluoropolymer), an Expanded Polystyrene (EPS) foam core for thermal insulation, and polymer-modified cement mortar for structural bonding.

Structural Parameters

Parameter	Specifications	Testing Standard
Panel Thickness	60mm, 80mm, 100mm, 120mm (customizable)	ASTM C1289
Panel Size	610mm × 2440mm (standard), up to 3000mm	ASTM C1289
EPS Core Density	20-30 kg/m³ (standard), 45 kg/m³ (high-strength)	ISO 8335
Thermal Conductivity	0.033-0.038 W/(m·K)	ASTM C518
Fire Rating	Class A (Non-combustible)	EN 13501-1 / ASTM E84
Sound Insulation	45-50 dB (100mm panel)	ISO 10140-2
Surface Hardness	≥6H (pencil hardness)	ASTM D3363
Coating Thickness	25-35 μm (primer + topcoat)	ISO 2808
Weight	18-28 kg/m²	Calculated

Fluorocarbon Coating Performance

Parameter	Value	Standard
Weather Resistance	25+ years (UV stability)	ASTM G154 / ISO 4892-3
Adhesion Strength	≥6 MPa (to cement board)	ASTM D4541
Chemical Resistance	Resistant to acids, alkalis, salts	ASTM D1308
Self-Cleaning	Hydrophobic surface (angle >110°)	ISO 27448
Gloss Retention	≥85% after 10,000h QUV aging	ASTM D523
Impact Resistance	50 cm (1 kg steel ball)	ASTM D2794

Key Advantages

Fluorocarbon Coating Superiority
Structural Excellence
Fire Safety & A-Grade Rating

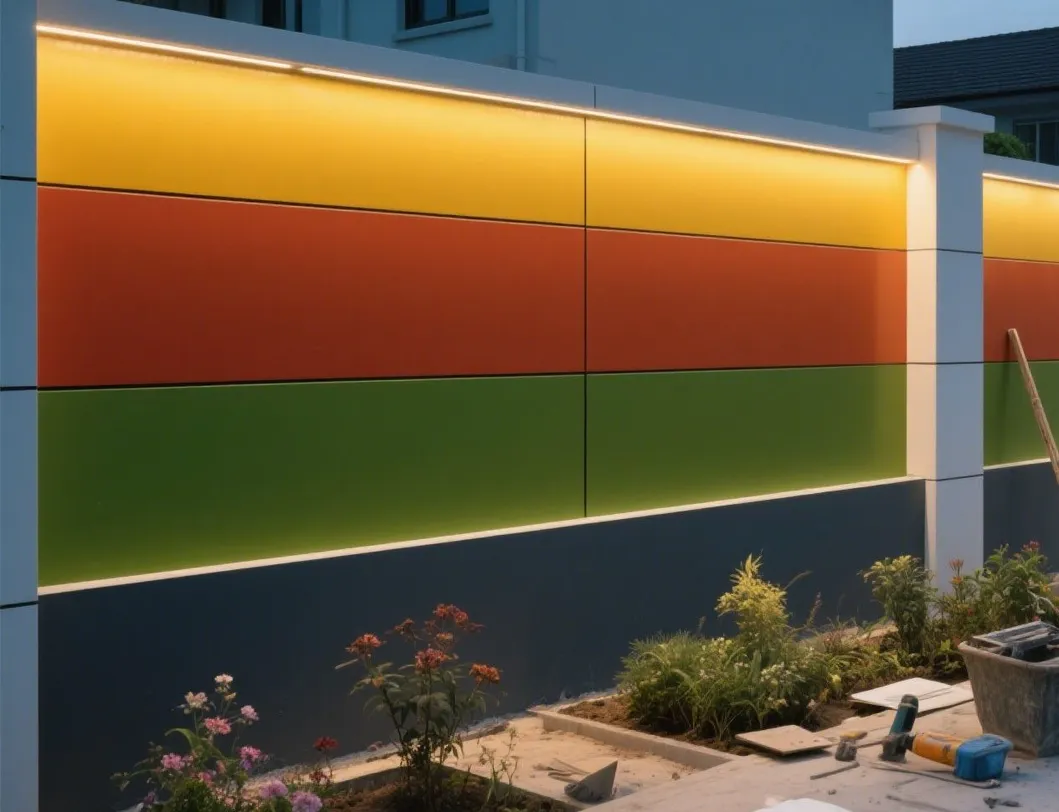

Aesthetic Design Flexibility

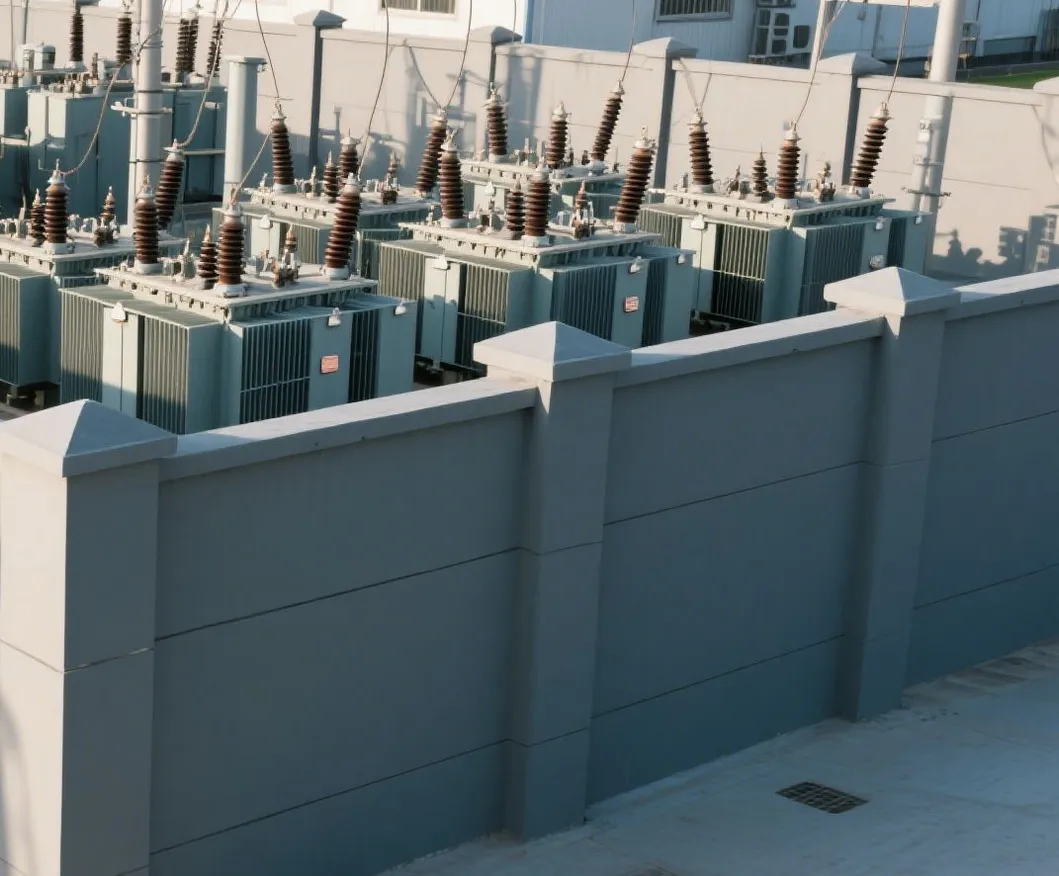

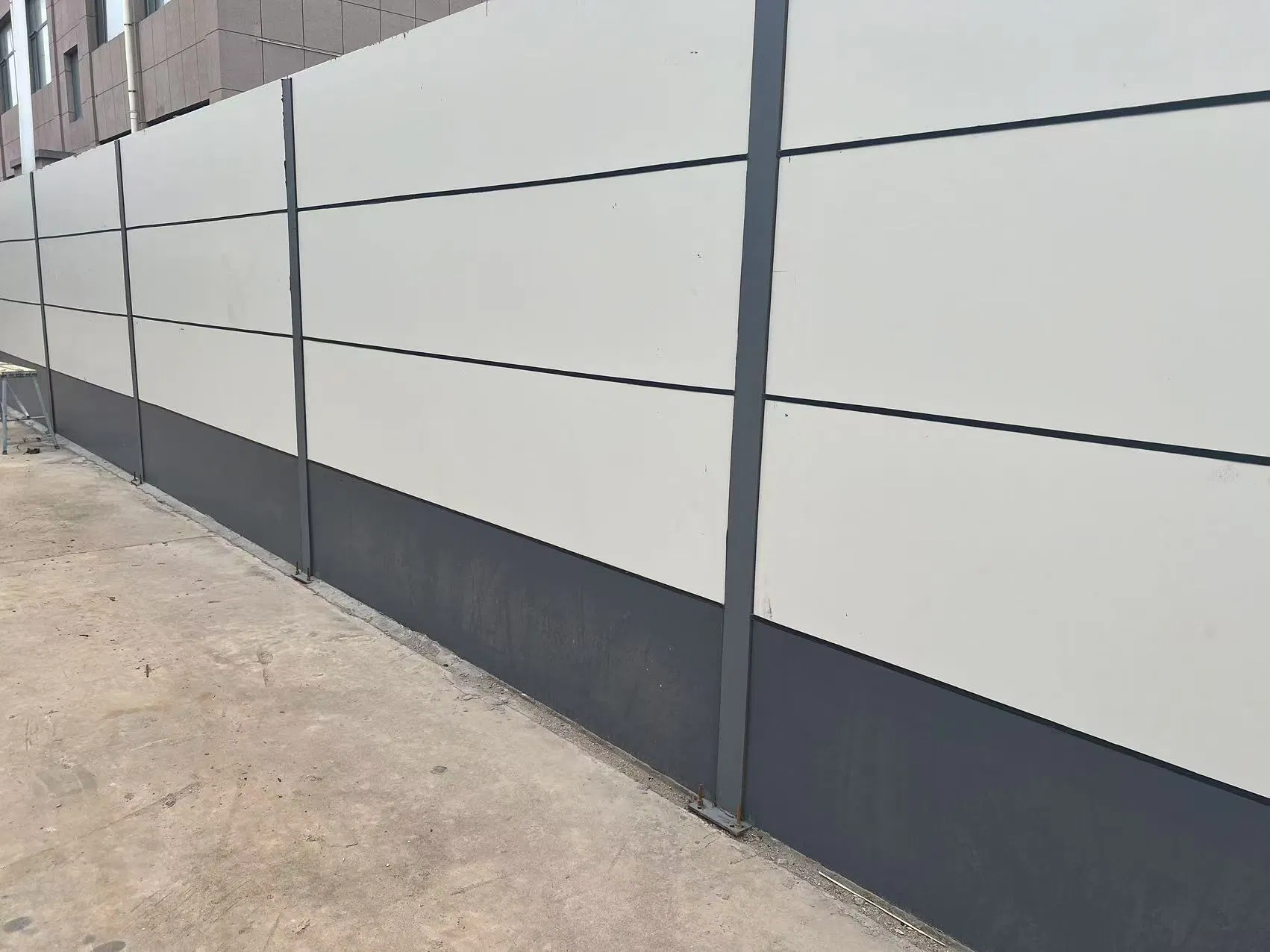

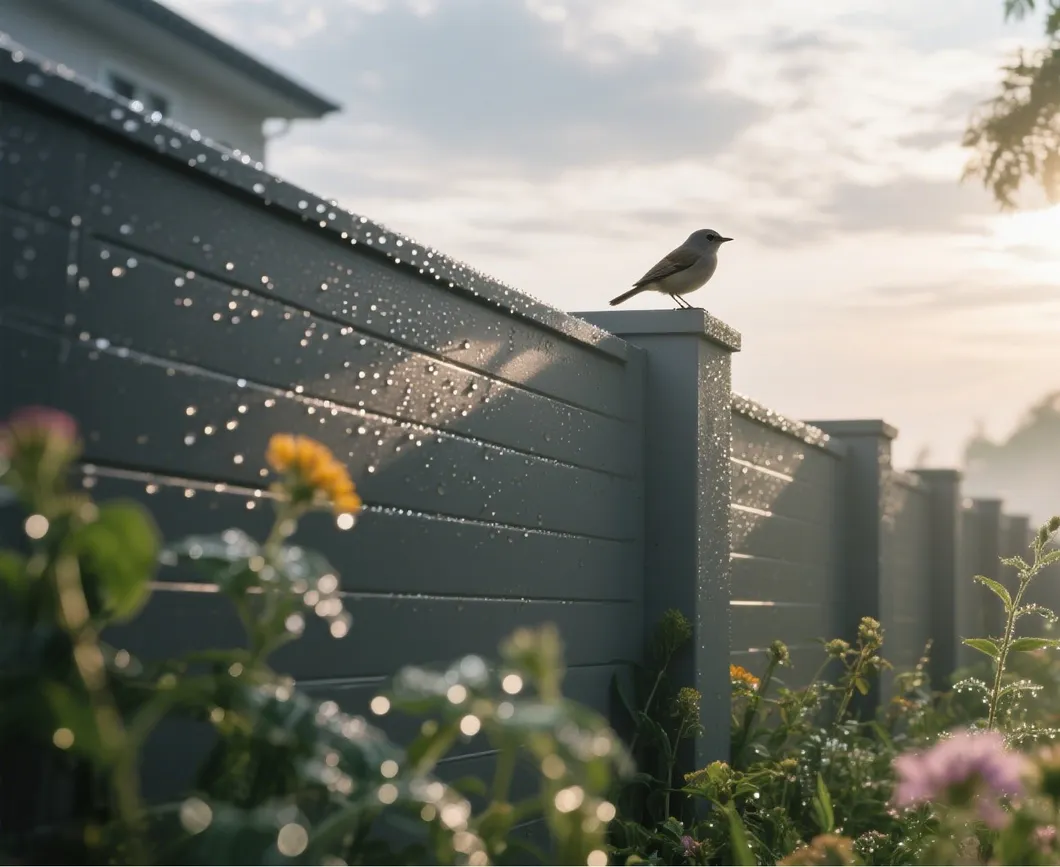

Applications

Commercial & Institutional Buildings
Industrial Facilities
Coastal & Marine Structures
High-End Residential Projects

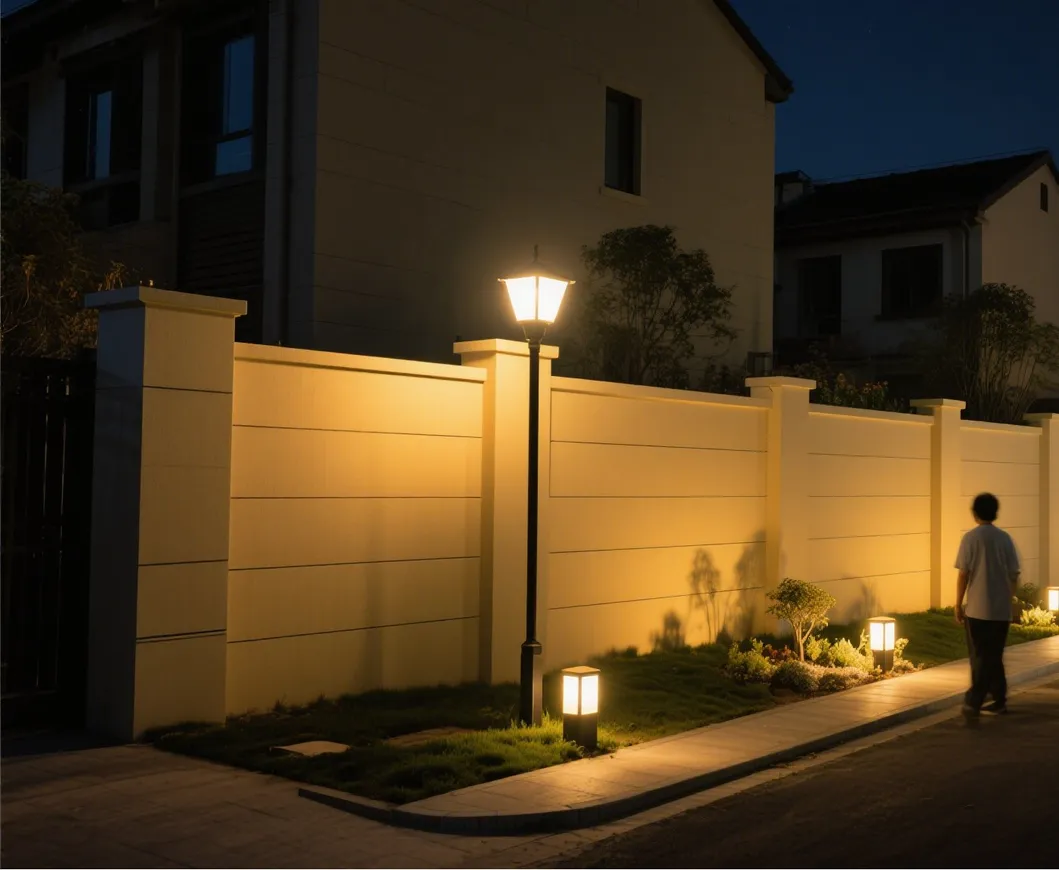

Coating Layers

1. Primer: Epoxy-based primer (80-100 μm) enhances adhesion.

2. Intermediate Coat: Fluorocarbon resin layer (15-20 μm) with UV absorbers.

3. Topcoat: FEVE fluoropolymer (25-35 μm) for color retention.

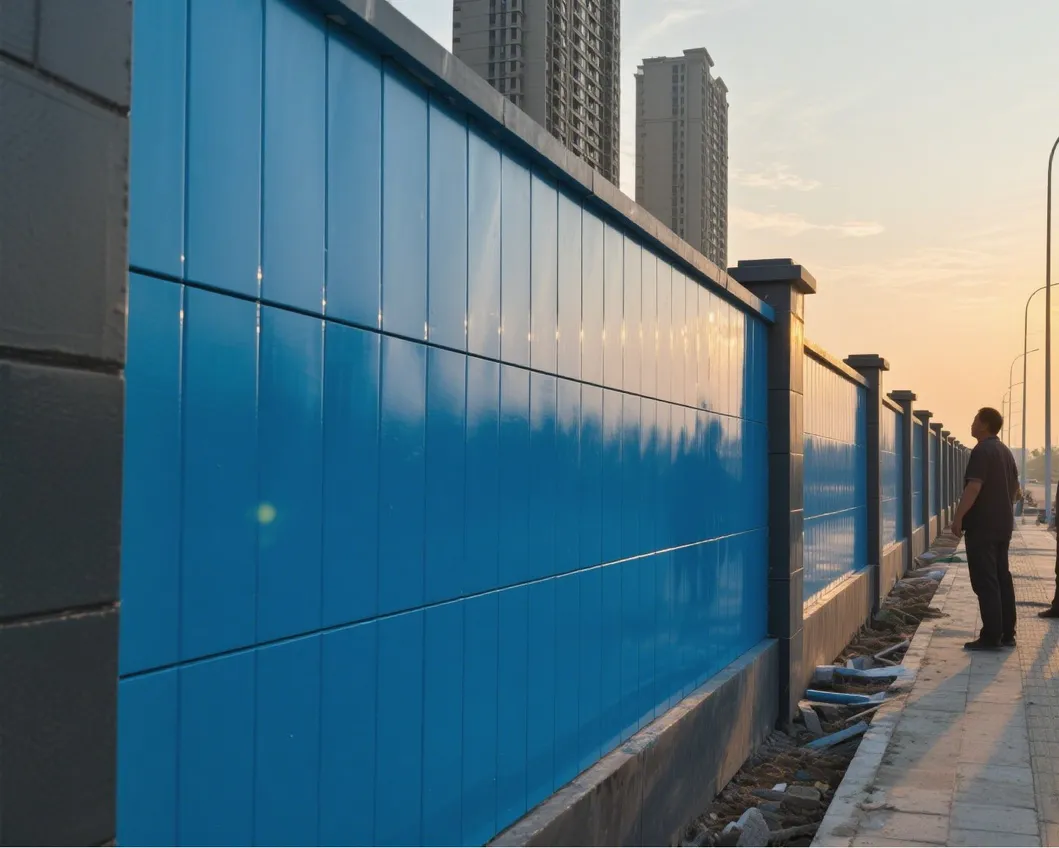

🛠️ Installation Guidelines

Step-by-Step Process:

Surface Preparation: Clean substrate, ensure flatness ≤4mm/2m.
Panel Fixing: Adhere panels using polymer-modified mortar (≥40% coverage).
Seam Treatment: Seal joints with elastic sealant to prevent water ingress.
Coating Touch-Up: Repair scratches using fluorocarbon spray kits.

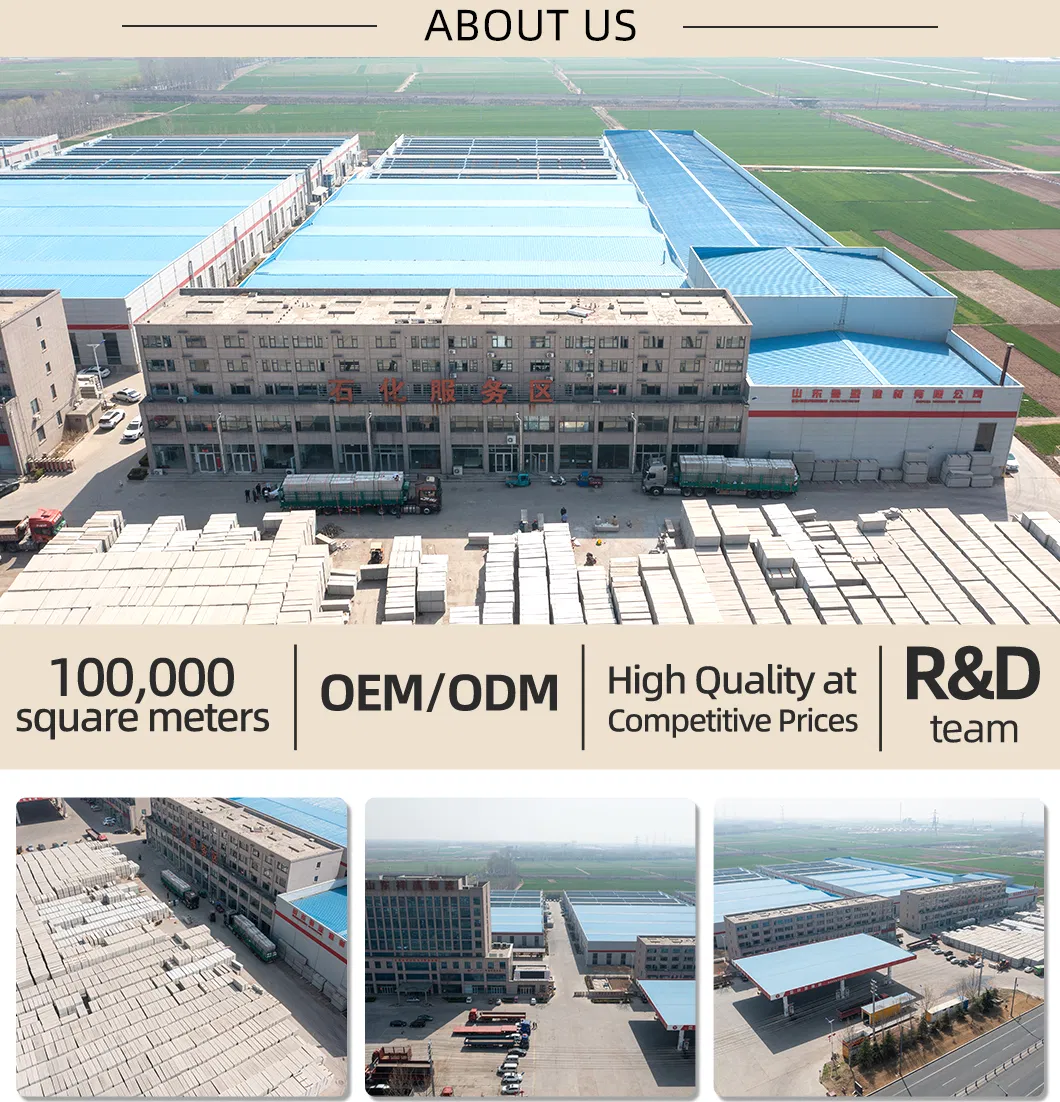

🏢 About Us

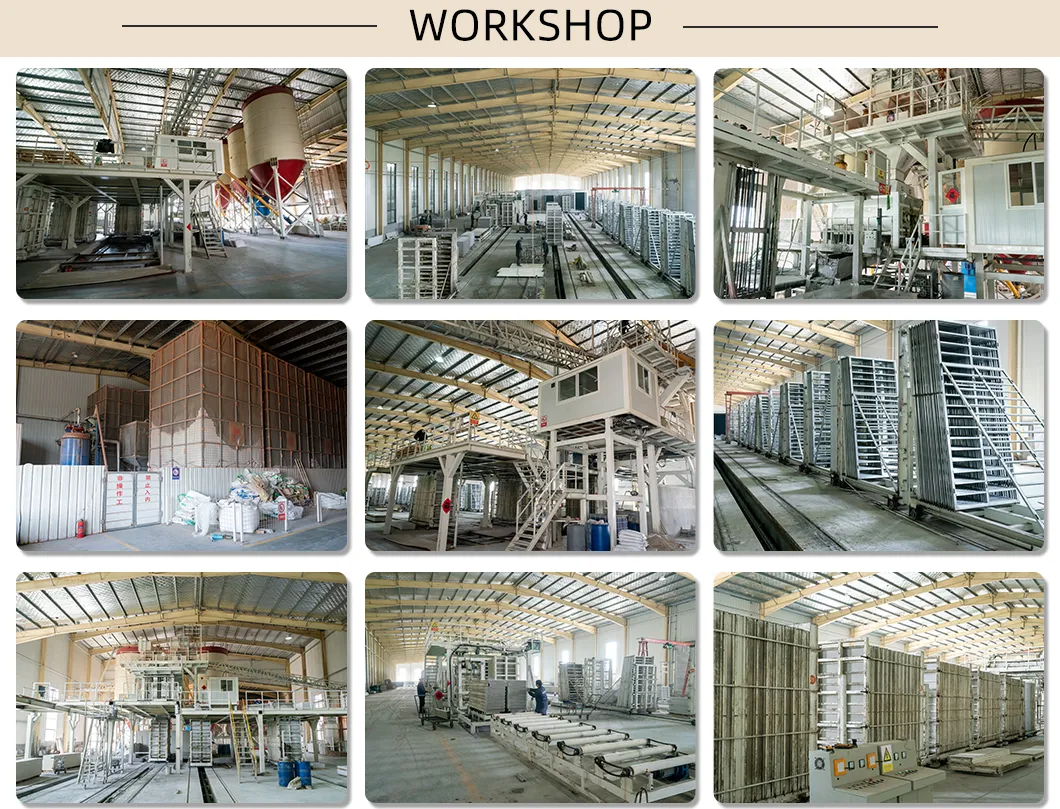

Our company is a high-tech enterprise specializing in the research, production, sales, and construction services of green, environmentally friendly, and energy-saving wall materials. With a modern production facility spanning over 6,000 square meters, our annual production capacity exceeds 1 million square meters of lightweight energy-saving composite wall panels.

Outstanding thermal insulation performance
Class A fire resistance rating
Excellent soundproofing and seismic resistance
Standardized rapid installation system

🌍 Exhibitions & Partners

📦 Packaging & Shipping

❓ Frequently Asked Questions

1. What is an EPS Cement Sandwich Panel?

It is a composite building panel composed of two layers of fiber cement boards or calcium silicate boards sandwiching an expanded polystyrene (EPS) foam core. It is lightweight, fire-resistant, and offers high thermal and acoustic insulation.

2. What are the key advantages for exterior walls?

Key benefits include lightweight construction (1/10 the weight of bricks), Class A fire rating, superior weather resistance via fluorocarbon coating, and rapid modular installation which significantly reduces labor costs.

3. Is the material environmentally friendly?

Yes. Both the cement boards and EPS core are 100% recyclable. The production process releases no toxic substances and has lower carbon emissions compared to traditional construction materials.

4. What is the expected service life?

Under normal conditions and with proper installation, these panels have a service life of over 30 years. The fluorocarbon coating provides extra protection against UV, acid rain, and salt spray.

5. Can it support heavy wall-mounted objects like TVs?

Yes. With pre-installed steel anchors or appropriate fixing methods, the panels can support loads up to 30kg/m², making them suitable for shelves, TVs, and other fixtures.

6. How is the panel moisture resistance?

The panels are naturally moisture-proof. The cement surface blocks liquid water penetration, while the closed-cell structure of the EPS core ensures extremely low water absorption.
